Zinc Chloride Flux

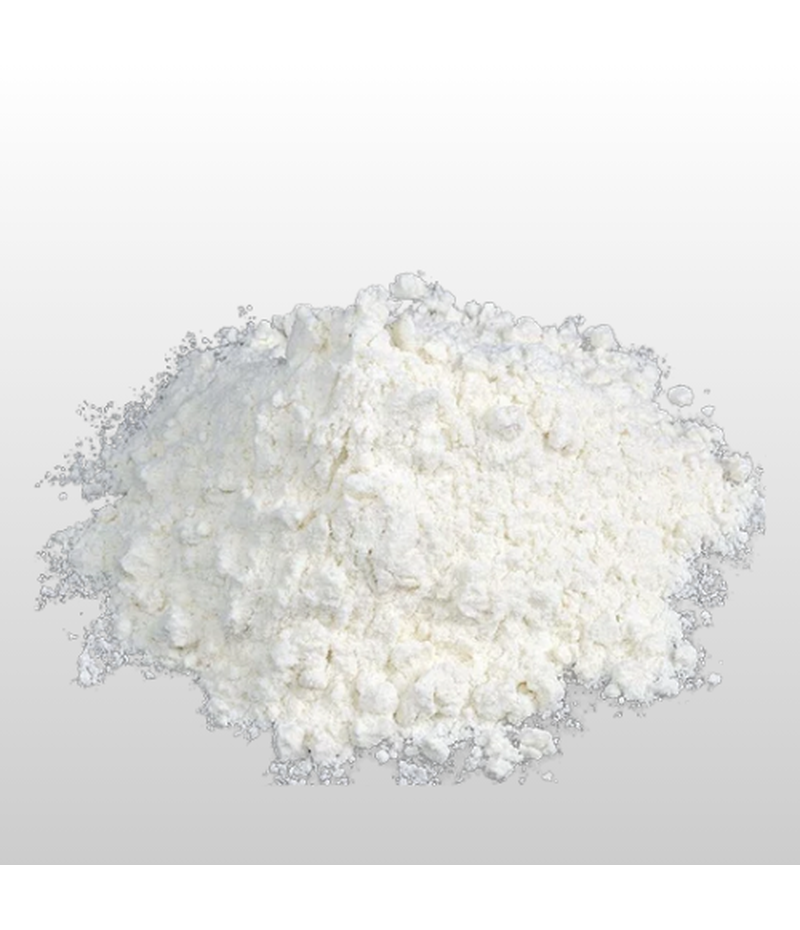

Zinc Chloride Flux (ZnCl2) is a white, crystalline, highly soluble inorganic salt used as a powerful active chemical flux. Its primary function is to chemically clean metal surfaces by dissolving the tenacious oxide layers (dross, rust, or scale) that prevent good wetting and bonding during metal joining or coating processes. It is one of the oldest and most aggressive fluxes in use today, typically applied as an aqueous solution or as a component in a paste/powder.
Main Composition and Function
ZnCl2 is a strong Lewis acid that attacks and dissolves metal oxides even at relatively low temperatures.
| COMPONENT | CHEMICAL FORMULA | PROPERTY HIGHLIGHT |
| Zinc Chloride | ZnCl2 | Strong Lewis acid, highly hygroscopic (absorbs water), and corrosive. |
| Active Flux | ZnCl2 / HCl (when heated) | Aggressive chemical attack on metal oxides (MxOy). |
| CLASSIFICATION | MELTING POINT | PRIMARY APPLICATION FOCUS |
| Active Chemical Flux | 290°C (554 F) | Surface preparation for soldering, brazing, and hot-dip galvanizing. |
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Oxide Removal | EXTREME | Effectively removes heavy layers of difficult-to-dissolve oxides. |
| Hygroscopicity | HIGH | Absorbs moisture from the air, which can aid in the dissolution process but complicates storage. |
| Wetting Promotion | EXCELLENT | Cleans the base metal surface, allowing the solder or zinc coating to spread evenly and bond strongly. |
Zinc Chloride Flux
Mechanism of Action
When heated or applied to a wet surface, ZnCl2 hydrolyzes and decomposes to release hydrochloric acid (HCl), which is the active oxide-dissolving agent:
The released HCl attacks the metal oxides (MxOy) on the surface, converting them into volatile or soluble chloride salts that are immediately carried away by the molten solder or coating. The clean metal surface is then ready for bonding.
Applications
- Hot-Dip Galvanizing: In the galvanizing industry, ZnCl2 is often combined with NH4Cl (Ammonium Chloride) to form a double salt flux. This flux is applied to the iron or steel article just before dipping into the molten zinc bath. It chemically cleans the last traces of iron oxide and ensures a continuous, high-quality metallic bond between the steel and the zinc coating.
- Soldering and Tinning: Used as a highly active flux for soldering difficult-to-solder materials, especially iron and steel. It is commonly found in acid-core solder or aggressive liquid fluxes.
- Brazing: Used in some non-ferrous and ferrous brazing applications where strong chemical cleaning is required.
Technical Guidance and Limitations
- Corrosivity (MAJOR Limitation): Because ZnCl2 is highly acidic and corrosive, its residues must be thoroughly cleaned from the joined surfaces immediately after the process is complete. If residues are left behind, they will continue to attack the base metal, leading to joint failure, premature corrosion, and component damage. This is why it is often avoided for electrical or electronic soldering in favor of less aggressive fluxes.
- Fumes: The use of ZnCl2 flux generates acidic and toxic fumes (mostly HCl and other chlorides) that require robust ventilation and fume extraction to ensure operator safety and environmental compliance.
- Storage: Due to its high hygroscopicity, solid ZnCl2 must be stored in airtight, moisture-proof containers.
