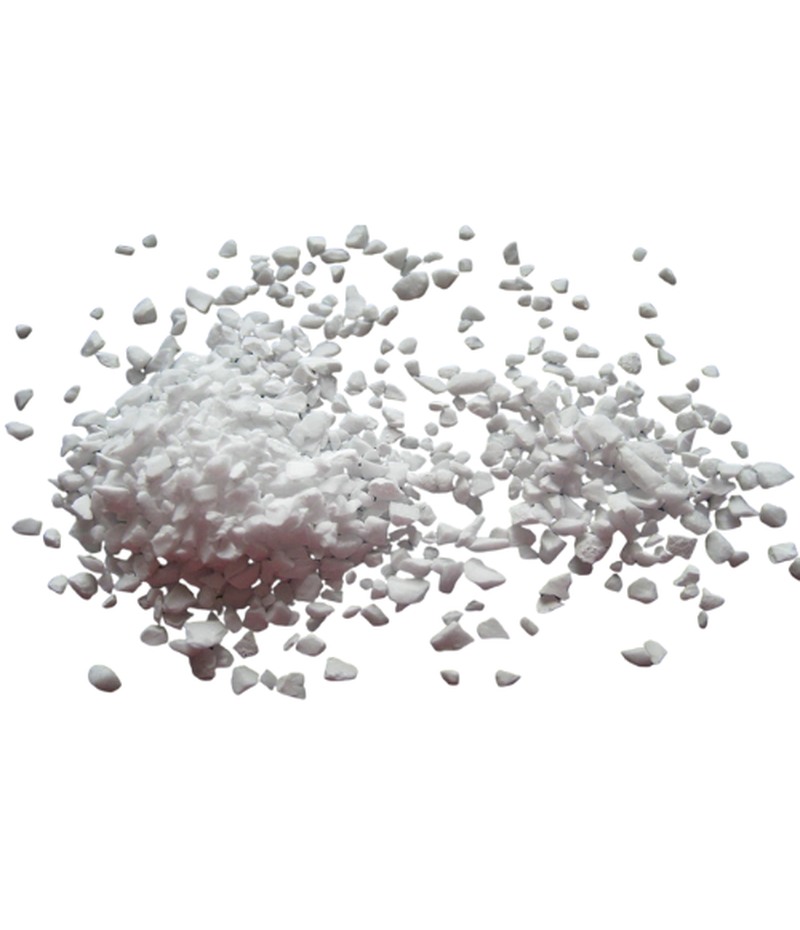

Tabular Alumina
Tabular Alumina is a dense, high-purity form of alpha-Alumina (Al₂O₃), typically >99.4% Al₂O₃. It is manufactured by sintering balls of calcined alumina to temperatures just below the fusion point (~1750°C), which causes the material to densify fully and the crystals to grow into large, plate-like (tabular) structures.
Tabular Alumina is considered the highest-quality non-fused alumina aggregate. It is indispensable in high-performance refractories where extreme requirements for hot strength, chemical purity, creep resistance, and thermal shock resistance must be met. It provides performance comparable to fused alumina but often with better thermal shock resistance due to its unique porous microstructure.
Main Function and Characteristics
Tabular Alumina provides ultimate purity and density, leading to superior thermal and mechanical performance.
| CHARACTERISTIC | VALUE RANGE | PRIMARY REFRACTORY FUNCTION |
|---|---|---|
| Alumina (Al₂O₃) Content | >99.4% | Ensures the highest refractoriness and chemical inertness. |
| Purity | ULTRA-HIGH | Minimal fluxing impurities (SiO₂, Fe₂O₃, Na₂O). |
| Apparent Porosity | ~3% to 6% | Characterized by closed, spherical micro-pores within crystals. |
CLASSIFICATION
- Structure Focus: High-Purity Sintered Aggregate
- Primary Application Focus: Dense, large, plate-like (tabular) crystals. Ultra-High Performance Refractories in Steel, Petrochemical, and Incineration Furnaces.
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
|---|---|---|
| Thermal Shock Resistance | EXCELLENT | Closed, spherical micro-pores act as crack arresters, improving resistance to spalling. |
| Creep Resistance | SUPERIOR | High purity and density resist plastic deformation under load at extreme temperatures. |
| Slag Resistance | EXCELLENT | High density and purity minimize chemical attack and penetration. |
Tabular Alumina
- The Tabular Structure and Micro-Porosity
The unique performance of Tabular Alumina stems from its distinctive microstructure:
- Tabular Crystals: The high-temperature sintering promotes the growth of large, plate-like Al₂O₃ crystals. These crystals, which interlock during the final shaping of the refractory, provide exceptional mechanical strength and resistance to high-temperature creep.
- Closed Micro-Porosity: Unlike typical porous aggregates, the porosity in Tabular Alumina is low and consists of closed, spherical pores trapped within the dense Al₂O₃ crystals. This structure provides a crucial advantage:
- Thermal Shock: The pores interrupt the propagation of thermal stress cracks, dramatically improving resistance to thermal cycling (spalling).
- Slag Penetration: Since the pores are closed and not connected to the surface, they do not provide pathways for liquid slag or metal to infiltrate the refractory body.
- Comparison with Fused Alumina
Tabular Alumina and Brown Fused Alumina (BFA) are both high-purity aggregates, but they differ in structure:
- BFA (Fused): Higher density, zero porosity. Excellent hardness and wear resistance.
- Tabular Alumina (Sintered): Slightly lower density, but with beneficial closed porosity. Superior thermal shock resistance.
Tabular Alumina is often chosen for linings that undergo frequent, rapid heating and cooling cycles.
- Applications
- Refractory Castables: The aggregate of choice for premium Ultra-Low Cement Castables (ULCC) and shotcreting mixes used in critical wear zones.
- Steel and Tundish Linings: Used in high-wear zones like impact pads, turbulence areas, and flow control systems due to its erosion and corrosion resistance.
- Petrochemical and Chemical: Employed in reformers, gasifiers, and furnaces where clean chemistry and high strength in reducing or cyclic atmospheres are required.
