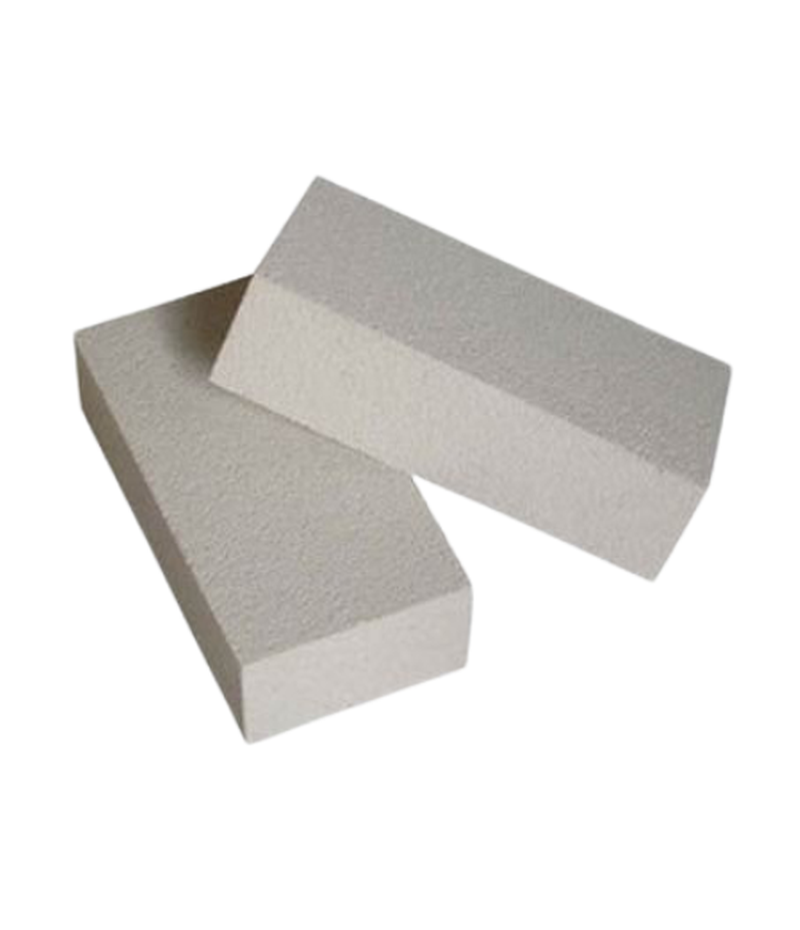

Sillimanite Andalusite Brick
Sillimanite Andalusite Brick is a premium type of Alumina-Silicate Brick, widely used in high-temperature and corrosive industrial environments. These bricks are derived from naturally occurring minerals andalusite and sillimanite, which share the same chemical formula: Al₂SiO₅.
When fired at high temperatures, these minerals transform into mullite (3Al₂O₃·2SiO₂), a highly stable refractory phase that imparts exceptional thermal and mechanical properties.
Key Characteristics and Performance
| Property | Andalusite Brick | Sillimanite Brick | Benefit in Application |
|---|---|---|---|
| Mullitization Temperature | Lower (~1380°C) | Higher (~1550°C) | Lower production energy/cost for andalusite |
| Volume Stability | Excellent (minimal change) | Good (insignificant change) | Outstanding dimensional stability in furnaces |
| Thermal Shock Resistance | Superior | Good | Withstands rapid temperature fluctuations |
| Refractoriness Under Load (RUL) | High | Very High | Maintains structural integrity under heavy load |
| Slag & Creep Resistance | Excellent | Excellent | Resists chemical attack and deformation |
Sillimanite Andalusite Brick: A Comprehensive Analysis
Overview
Sillimanite and Andalusite bricks represent a premium category of Alumina-Silicate Refractories, forming the backbone of high-performance linings in industries exposed to extreme thermal and chemical stresses. These bricks are derived from AKS minerals (Andalusite, Kyanite, Sillimanite)—polymorphs of Al₂SiO₅—which share the same chemical formula but differ in crystal structure due to geological formation conditions.
Their unique property lies in their ability to transform into mullite (3Al₂O₃·2SiO₂) during firing, a phase that imparts exceptional refractoriness, strength, and corrosion resistance.
1. The Alumino-Silicate Mineral Group (AKS)
- Andalusite:
- Forms under low pressure and moderate temperature.
- High density and low porosity in raw state.
- Converts to mullite with minimal volume change (~+5%), ensuring dimensional stability and enabling in-situ firing with lower energy costs.
- Sillimanite:
- Forms under higher temperature and pressure.
- Converts to mullite at ~1550°C with negligible volume change.
- Produces bricks with dense microstructure, high strength, and excellent creep resistance.
Key Advantage: Both minerals exhibit minimal expansion during mullitization, unlike kyanite (+18%), which requires pre-calcination.
2. Critical Role of Mullitization and Volume Stability
- Mullite Formation:
- High melting point (~1840°C) → superior refractoriness and load-bearing capacity.
- Interlocking mullite crystals reinforce grain boundaries → dense, low-porosity structure → resistance to slag and gas penetration.
- Volume Stability:
- Andalusite and Sillimanite bricks maintain dimensional integrity during firing and service.
- Prevents micro-cracks and shrinkage → longer lining life, reduced maintenance, and improved energy efficiency.
3. Industrial Applications
- Steel Industry: Ladle linings, tundish nozzles, slide gates → Andalusite preferred for thermal shock resistance.
- Glass Industry: Forehearths, port bottoms → corrosion resistance and thermal stability.
- Cement & Lime: Rotary kiln linings → abrasion and chemical stability.
- Non-Ferrous Smelting: Copper and aluminum furnace linings → high resistance to aggressive slags.
Why They Outperform Fireclay and Standard High-Alumina Bricks
- Higher alumina content (55–65%).
- Superior thermal shock resistance.
- Outstanding refractoriness under load (RUL).
- Excellent slag and creep resistance.
3. Manufacturing and Composition
The production of these high-performance Alumina-Silicate Refractory Bricks involves advanced material science and precision processing:
- Raw Material Preparation:
- Andalusite and/or Sillimanite mineral concentrates are crushed and graded into coarse aggregates, intermediate grains, and fine powders.
- High-purity sources (low Fe₂O₃ and TiO₂ impurities) are selected to maximize Al₂O₃ content and high-temperature stability.
- Mixing and Formulation:
- Aggregates are blended with fine powders, binding clays, ultrafine silica, or synthetic mullite.
- Some formulations combine Andalusite and Sillimanite with additives like phosphates for enhanced slag resistance.
- Typical composition:
- 30–40% Sillimanite
- 35–55% Andalusite/Mullite
- Forming:
- High-pressure or vibration molding ensures high bulk density and low apparent porosity (<20%).
- Firing (Sintering):
- Fired in tunnel kilns at 1400°C–1600°C.
- This stage converts Al₂SiO₅ minerals into interlocking mullite crystals, delivering strength and dimensional stability.
4. Technical Performance Advantages in High-Stress Environments
A. Superior Thermal Shock Resistance (TSR)
- Critical for cyclic heating/cooling applications (steel ladles, intermittent kilns).
- Mullite-rich structure with low thermal expansion absorbs internal stresses without spalling.
- Andalusite bricks excel in repeated severe thermal cycles.
B. High Creep Resistance and Refractoriness Under Load (RUL)
- RUL often exceeds 1500°C at 0.2 MPa load.
- Low creep rate ensures structural integrity under heavy loads for extended campaigns.
- Outperforms traditional fireclay bricks significantly.
C. Excellent Corrosion and Abrasion Resistance
- Dense mullite structure resists slag penetration and molten metal erosion.
- Slag Resistance: Effective against alkalis, molten iron, and metallurgical melts.
- Abrasion Resistance: High hardness prevents wear in zones with high gas flow or abrasive solids.
5. Specific Industrial Applications
Steel and Iron Industry
- Blast Furnace: Hearth, tuyeres, and lower shaft linings for thermal stress and alkali resistance.
- Torpedo Ladles & Runners: Withstand molten metal erosion and thermal shock.
- Steel Ladle & Tundish Linings: Handle aggressive temperature cycling and slag attack.
Glass and Ceramic Industry
- Glass Furnaces: Upper structures, regenerators, breastwalls for thermal stability and low creep.
- Ceramic Kilns: Dimensional stability for kiln furniture and car structures.
Other Heavy Industries
- Petrochemical units, cement rotary kilns (burning zones), and high-temperature incinerators.
Conclusion
Sillimanite-Andalusite bricks deliver low thermal expansion, superior thermal shock resistance, high creep resistance, and exceptional chemical durability, making them a strategic choice for demanding industrial environments. Andalusite’s ability to be used with minimal pre-treatment adds economic and environmental advantages, reinforcing its position as a modern, high-performance refractory solution.
