Silicone Carbide Beam
Silicone Carbide Beam are composed of high-purity SILICON CARBIDE (SiC). They are manufactured using specialized high-temperature sintering techniques to create dense, robust structures.
| CATEGORY | BONDING / MANUFACTURING | OPERATIONAL TEMP. LIMIT | PRIMARY ADVANTAGE |
| Recrystallized SiC (ReSiC) | SiC to SiC bond | ~1650°C | Maximum purity, minimal residual Si |
| Reaction-Bonded SiC (RBSiC) | SiC bonded with residual Si | ~1400°C | High strength, low porosity, cost-effective |
| Nitride-Bonded SiC (NBSiC) | SiC bonded with Si3N4 | ~1650°C | Excellent hot strength and chemical resistance |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Hot Modulus of Rupture (HMOR) | EXCEPTIONAL | Maintains structural strength with minimal creep or sag at extreme temperatures. |
| Thermal Shock Resistance | OUTSTANDING | Very high thermal conductivity and low coefficient of thermal expansion (CTE) prevent thermal stress cracking. |
| Density/Porosity | VERY HIGH DENSITY | Manufacturing processes ensure high structural integrity and resistance to oxidation/gas permeation. |
| Load-Bearing Capacity | MAXIMUM | Superior to all oxide-based refractory beams (e.g., Mullite or High Alumina). |

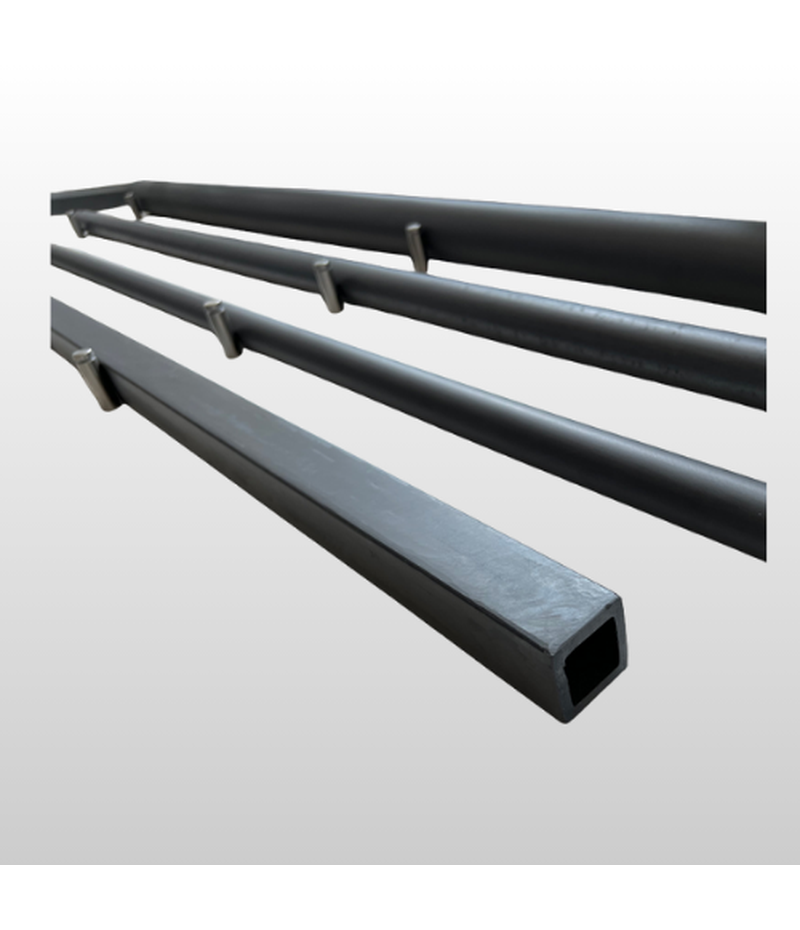

Silicone Carbide Beam
Advantages and Key Characteristics
SiC Beams are the material of choice for kiln furniture in high-temperature, continuous firing applications where maximizing payload and minimizing structural component mass are critical.
- Minimizes Mass and Maximizes Payload: Due to its superior HMOR, an SiC beam can be manufactured with a smaller cross-section than an equivalent oxide refractory beam (like Mullite), reducing the dead mass (the weight of the kiln furniture) and increasing the useful payload.
- Energy Efficiency: The high thermal conductivity of SiC facilitates rapid heat transfer to the product being fired and allows for quicker furnace cycling, directly reducing energy costs per unit of product.
- Dimensional Stability: Exhibiting almost no creep or deflection under load at service temperatures up to 1600°C, SiC beams ensure long-term structural reliability and consistent product quality.
- Corrosion Resistance: Highly resistant to many aggressive kiln atmospheres and chemical environments, including those involving sulfur and acid vapors.
Typical Industries and Applications
SiC Beams are used extensively as structural supports in thermal processing:
- Ceramics Industry: Kiln car superstructure, setter supports, and roller kiln beams for firing advanced ceramics, sanitary ware, and technical porcelain.
- Metallurgical Industry: Supports in heat-treatment furnaces and sintering ovens.
- Chemical Industry: Structural components in high-temperature reactors and calcining furnaces.
Furnace Areas and Service Zones
They are specified for structural zones that bear load under continuous high heat:
- KILN CAR FURNITURE: Used as cross beams to support massive loads of product in tunnel kilns and periodic kilns.
- ROLLER HEARTH KILN: Used as the structural roller beams themselves (often RBSiC) to convey product through the furnace.
- SINTERING FURNACES: Used as stable shelf supports.
Key Data Sheet Properties to Consider
Selection criteria focus on hot strength and stability:
- Hot Modulus of Rupture (HMOR): CRITICAL VALUE. Must be high at the service temperature (e.g., > 80 MPa at 1400°C) to confirm load-bearing capacity.
- Bulk Density (BD): High BD (e.g., > 2.6 g/cm3) indicates a dense structure.
- Creep Rate: Must be extremely low to prevent permanent sag over the campaign life.
- Bonding Type (RBSiC, ReSiC, NBSiC): Selection depends on the maximum operating temperature and atmospheric conditions (e.g., RBSiC is limited by the melting point of residual Si).
Technical Guidance: SiC beams must be specified with precise dimensions to match the load and span requirements of the kiln. They represent a significant investment but offer an excellent return through reduced fuel costs, faster cycle times, and maximized payload. Beams must be installed carefully to distribute load evenly and prevent point stresses.
