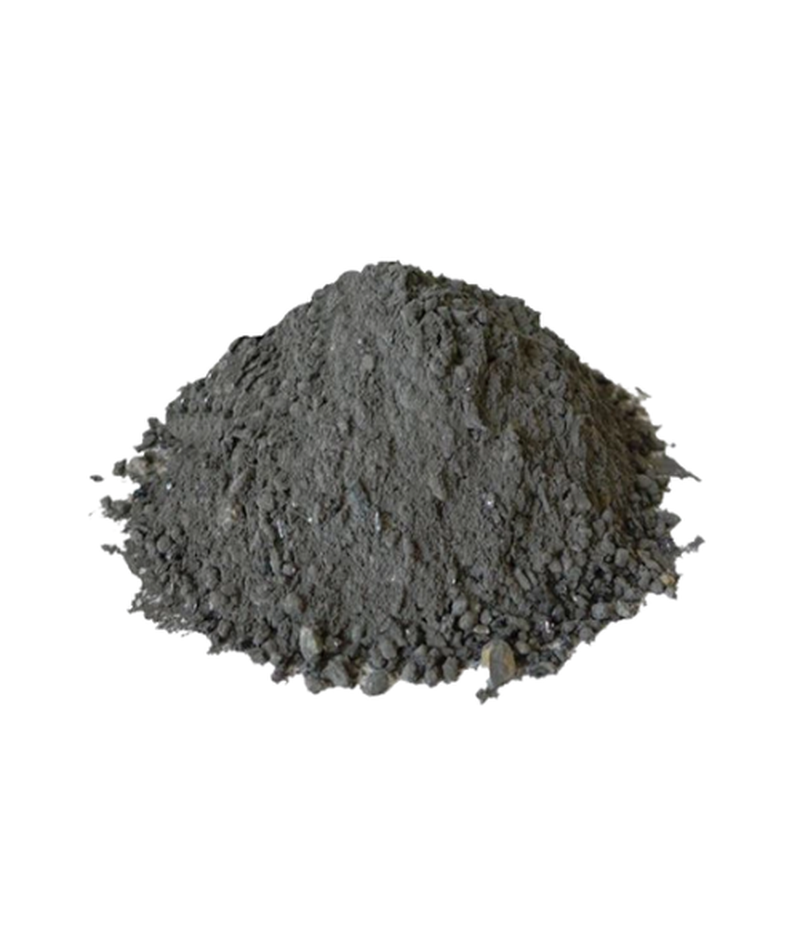

Silicon Carbide Castable
Silicon Carbide Castable consists of high-purity SILICON CARBIDE (SiC) aggregate and a high-performance binding system. Due to the inert nature of SiC, the binder must be highly compatible, often an oxide binder (like Al2O3/SiO2 cement or clay) or a chemical binder (like colloidal silica/alumina).
| CATEGORY | BINDER TYPE (Matrix) | SiC CONTENT | PRIMARY ADVANTAGE |
| Oxide-Bonded SiC | Al2O3–SiO2 (Mullite/Clay) | 60% to 80% | High thermal shock resistance, economical |
| High-Purity SiC | Low-Cement $Al2O3 | 85% to 95% | Maximum hot strength and thermal conductivity |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Thermal Shock Resistance | OUTSTANDING | Extremely high thermal conductivity and low coefficient of thermal expansion (CTE) prevent thermal stress cracking. |
| Thermal Conductivity (Tc) | EXCEPTIONALLY HIGH | SiC is highly conductive, crucial for heat transfer applications (e.g., heat exchangers). |
| Chemical Inertness | EXCELLENT | Resists molten aluminum, zinc, and neutral/reducing atmospheres. |
| Abrasion Resistance | EXTREME | The intrinsic hardness of the SiC grain resists mechanical scouring and particle erosion. |
Silicon Carbide Castable
Advantages and Key Characteristics
SiC Castables are specialized materials used in applications where a combination of high heat transfer, aggressive wear, and chemical attack requires a material superior to standard oxide castables.
- Rapid Heat Transfer: The high thermal conductivity of SiC is utilized when heat must be efficiently transferred through the lining (e.g., radiant tubes, heat exchanger walls, or furnace hearths).
- Superior Thermal Stability: The combination of high Tc and low CTE makes SiC castables highly resistant to spalling and thermal cracking, allowing for faster furnace cycle times than oxide refractories.
- Corrosion and Penetration Resistance: SiC is non-wetting to many non-ferrous molten metals (especially Aluminum) and is highly resistant to chemical attack in neutral and reducing atmospheres, making it ideal for metal contact zones.
- Ease of Installation in Complex Shapes: Unlike prefabricated SiC bricks or beams, the castable form allows for the easy creation of complex, monolithic shapes like burner blocks, cyclone cones, and intricate runner linings.
Typical Industries and Applications
This castable is essential in high-wear, high-value, and temperature-critical processes:
- Non-Ferrous Industry: Linings for launders, tapping blocks, thermocouple protection sheaths, and contact zones in aluminum and zinc holding furnaces.
- Ferrous Industry (Steel): High-wear zones in Blast Furnace stacks, furnace hearths (for heat transfer), and coke oven door linings.
- Waste Incineration: Linings in high-wear, high-temperature zones exposed to corrosive ash and gas flow.
- Kiln Furniture: Cast setters and supports for non-load-bearing applications where fast cycling is necessary.
Furnace Areas and Service Zones
They are specified for structural, heat-transfer, and high-wear areas:
- BURNER BLOCKS/PORTS: Used to resist high localized heat and flame erosion.
- CYCLONE CONES/LINERS: Used to resist severe abrasion from high-velocity particles (e.g., in the cement industry).
- METAL CONTACT ZONES: Used to prevent sticking and chemical degradation by molten metal.
Key Data Sheet Properties to Consider
Selection criteria focus on thermal properties and bond limitations:
- SiC Content: CRITICAL VALUE. Generally 60% to 95%—higher content means better thermal performance but higher cost.
- Thermal Conductivity (Tc): Look for high values (e.g., 10 – 40 W / (m.K)) and confirm the value at the service temperature.
- Bonding System: Understand the limitation of the bond. Oxide-bonded systems are less expensive but have lower maximum service T than chemical-bonded or high-purity SiC systems.
- Atmosphere Compatibility: SiC is less suitable for strongly oxidizing environments above 1400°C but excellent in neutral or reducing environments.
Technical Guidance: Like all high-density castables, SiC castables require a strict, slow dry-out schedule to prevent explosive spalling. They are generally superior to oxide castables in thermal shock environments, but their chemical resistance to strongly basic slags (high CaO) is poor.
