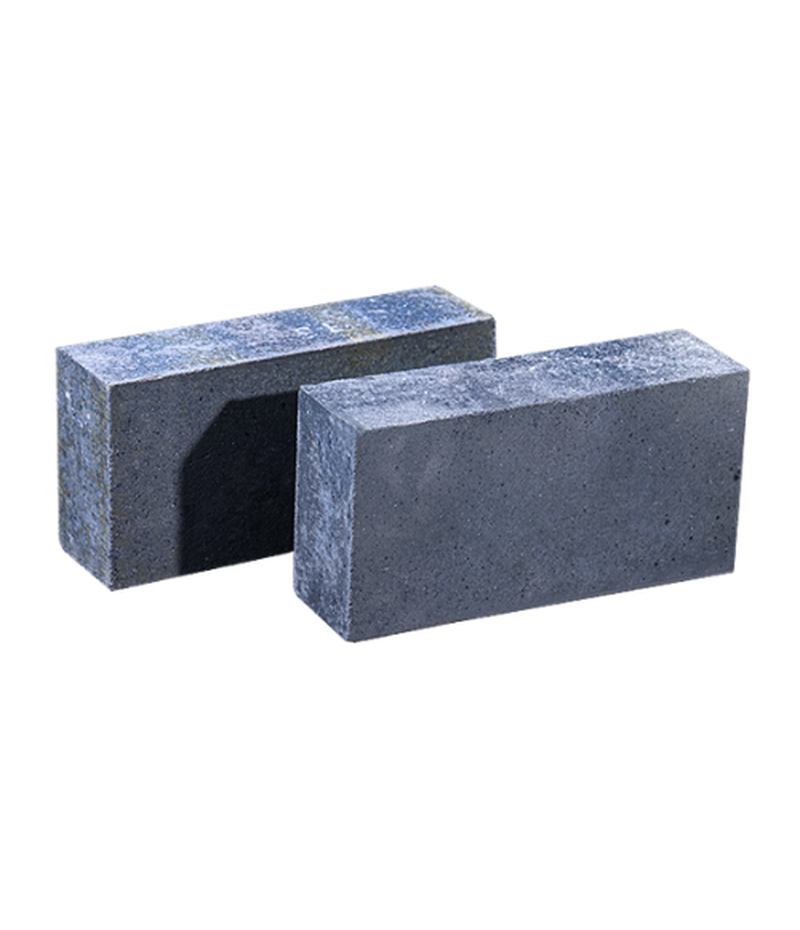

Silicon Carbide Brick High SiC
Silicon Carbide Brick High SiC: Main Chemical Compositions & Categories
High-SiC bricks are composed predominantly of crystalline SILICON CARBIDE (SiC). The high purity is achieved using highly refractory bonds (like SiC itself, Si3N4, or Sialon) and minimal fluxing agents, distinguishing them from common Clay-Bonded SiC (which is typically 50-70% SiC).
| CATEGORY | SiC CONTENT | BONDING / MATRIX | PRIMARY ADVANTAGE |
| Recrystallized SiC (ReSiC) | > 98% | SiC to SiC bond | Maximum purity, highest refractoriness |
| Nitride-Bonded SiC (NBSiC) | 70% to 85% | Si3N4 bond | Superior creep resistance, low permeability |
| Reaction-Bonded SiC (RBSiC) | > 85% | Si bond (residual Si) | Maximum hardness and thermal shock resistance |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Thermal Shock Resistance | OUTSTANDING | High thermal conductivity (Tc) and extremely low thermal expansion (CTE) prevent internal stress accumulation. |
| Hot Strength (CISC) | VERY HIGH | The SiC crystal structure maintains strength and minimizes creep up to 1650°C. |
| Abrasion Resistance | EXTREME | SiC is intrinsically one of the hardest non-oxide materials, highly resistant to particle erosion. |
| Chemical Inertness | EXCELLENT | Resistant to molten non-ferrous metals, acid/neutral slags, and alkali attack. |
Silicon Carbide Brick High SiC
Core Technical Composition and Bonding Categories
The superlative performance of High-SiC bricks is directly linked to the strength of the covalent silicon carbide bond and the specific matrix utilized. We offer three primary types, each tailored to maximize performance under distinct operating conditions:
| Category | SiC Content | Bonding / Matrix | Max Service Temp | Primary Advantage |
|---|---|---|---|---|
| Recrystallized SiC (R-SiC) | > 98% | SiC to SiC Bond | Up to 1750°C | Maximum purity, highest refractoriness, and oxidation resistance due to the dense, virtually bond-free SiC structure. |
| Nitride-Bonded SiC (NBSiC) | 70% to 85% | Si₃N₄ Bond | Up to 1550°C | Superior creep resistance and non-wettability by molten non-ferrous metals (e.g., aluminum), ideal for direct metal contact. |
| Reaction-Bonded SiC (RBSiC / SiSiC) | > 85% | Residual Si Bond | Up to 1380°C | Maximum density and mechanical hardness, offering exceptional wear resistance and dimensional precision at a moderate cost. |
Unmatched Properties and Performance
The unique crystalline structure of SiC provides a spectrum of properties that no single oxide refractory can match, positioning High-SiC bricks as a critical investment for demanding applications:
| Property | Typical Performance | Mechanism of Advantage |
|---|---|---|
| Thermal Shock Resistance | OUTSTANDING | Extremely high thermal conductivity (Tc up to 50 W/mK) and an inherently low coefficient of thermal expansion (CTE) prevent the buildup of thermal stress, allowing for rapid heating and cooling cycles without cracking or spalling. |
| Hot Strength and Creep | VERY HIGH | The SiC crystal structure maintains its strong covalent bonds and structural rigidity up to 1650°C, ensuring dimensional stability and minimal creep even under heavy load at extreme temperatures. |
| Abrasion Resistance | EXTREME | With a Mohs hardness second only to diamond, SiC is fundamentally resistant to erosion from particle-laden gas streams, molten droplets, and high-velocity abrasive materials (e.g., coke, coal, clinker). |
| Chemical Inertness | EXCELLENT | Highly resistant to neutral and acidic slags, as well as molten non-ferrous metals like aluminum and zinc, due to its low wettability. In oxidizing atmospheres, a protective layer of silica (SiO₂) forms on the surface, preventing further corrosion (passive oxidation). |
Primary Industrial Applications
High-SiC bricks are indispensable in high-thermal-flux, high-wear, and chemically aggressive zones across multiple industries:
- Non-Ferrous Smelting
- Aluminum Reduction Cells: Nitride-Bonded SiC (NBSiC) is the material of choice for sidewalls due to its high thermal conductivity, which promotes efficient heat transfer and freeze-out, and its non-wetting property, which resists attack by molten aluminum and cryolite.
- Zinc Smelting: Linings for zinc volatilizing kilns and distillation furnaces.
- Copper & Lead Smelting: Used in areas facing extreme thermal cycling and corrosive attack.
- Iron & Steel Production
- Blast Furnace: Employed in the lower stack, belly, and hearth where high wear from descending burden and high thermal conductivity is required to ensure shell cooling and preserve the lining.
- Heating and Reheating Furnaces: Used for skid pipes and support skids that require outstanding hot abrasion resistance and minimal deformation under load.
- Chemical, Environmental, and Ceramics
- Waste Incinerators and Gasifiers: Utilized in the combustion and throat sections to withstand rapid temperature swings, abrasive ash, and corrosive acidic gases.
- Petrochemical: Lining of reformers and reactors exposed to strong reducing gases and high temperatures.
- Kiln Furniture: R-SiC and NBSiC are widely used as beams, posts, and setters in the ceramic and electronic industries due to their high load capacity, dimensional stability, and ability to maximize kiln throughput and energy efficiency.
Strategic Advantage for the Client
Choosing a high-grade Silicon Carbide solution is a strategic decision that drives significant operational returns:
- Extended Campaign Life: High-SiC can extend lining life by 3 to 5 times compared to conventional alumina bricks in severe environments, drastically reducing downtime and maintenance costs.
- Energy Efficiency: The material’s exceptionally high thermal conductivity allows for faster cycle times and reduced overall energy consumption, delivering tangible savings in high-throughput operations.
- Maximum Reliability: Its superior thermal shock and creep resistance ensures the structural integrity of critical furnace components remains intact, minimizing the risk of catastrophic failure and ensuring reliable, continuous production.
