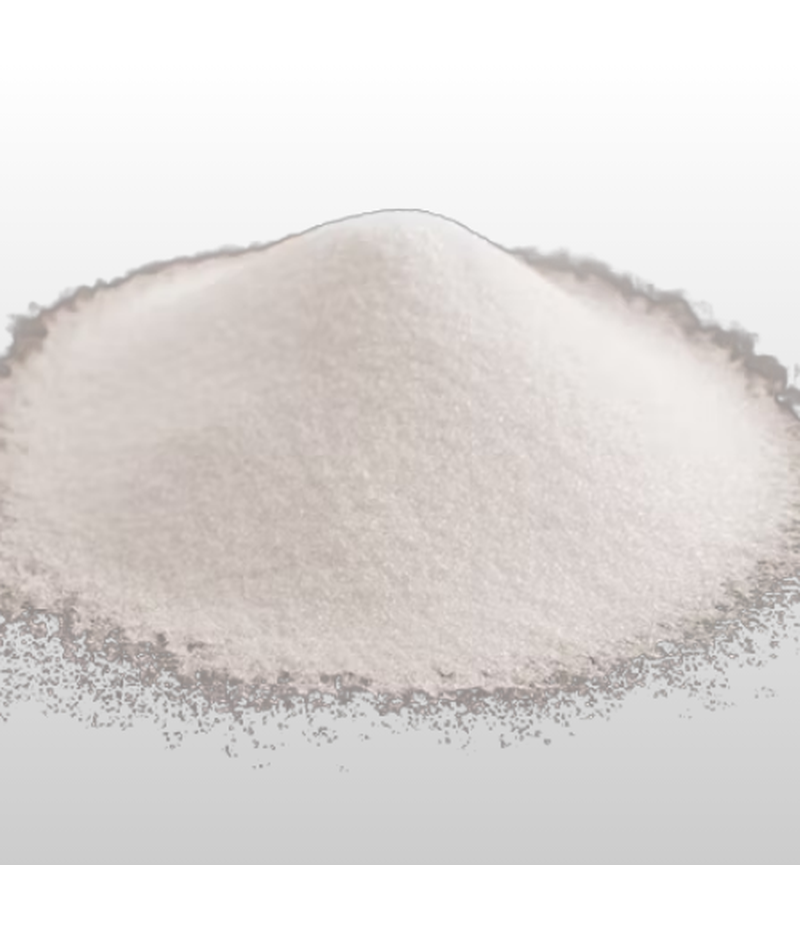

Silica Quartzite Sand
Silica Quartzite Sand in the form of high-purity Quartzite (a hard, metamorphic rock) or high-purity Silica Sand (a granular form), is one of the most abundant and economically important raw materials used in the high-temperature industry. It is a highly acidic oxide.
It is used primarily as a refractory aggregate, a fluxing agent, and the key ingredient in Silica Refractories and Glass Production. The grade is determined by the form (quartzite lump for furnaces, sand for molding) and its purity, with low iron and low alkali content being critical for refractory applications.
Main Function and Characteristics
Silica provides a high melting point, is chemically stable in acidic environments, and is essential for forming glass and ceramic bonds.
| CHARACTERISTIC | VALUE RANGE | PRIMARY METALLURGICAL FUNCTION |
|---|---|---|
| Purity (SiO₂ Content) | >95% to 99.9% | Required for high-end refractories and glass. |
| Chemical Nature | ACIDIC | Resists acidic slags; used to adjust slag basicity. |
| Melting Point | ~1710°C (3110°F) | High melting point, but prone to softening due to impurities. |
CLASSIFICATION
- Mineralogy Focus: Acidic Oxide Refractory/Flux
- Primary Application Focus: Various polymorphs (Quartz, Cristobalite, Tridymite). Refractory Linings, Foundry Sand, and Slag Conditioners.
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
|---|---|---|
| Refractoriness | GOOD | High service temperature when pure; excellent for structural stability. |
| Slag Resistance | EXCELLENT (to acidic slags) | Resists chemical attack from SiO₂-rich slags (acid-on-acid resistance). |
| Thermal Expansion | VARIABLE | Depends heavily on the crystalline form (polymorph); must be controlled. |
Silica Quartzite Sand
- Applications in High-Temperature Industries
- Silica Refractories: High-purity quartzite is the raw material for Silica Bricks, which are used in the crowns and upper structures of Coke Ovens and Glass Furnaces. Their unique property is a stable volume expansion at high temperatures.
- Foundry Sand: High-purity silica sand is the most common material used to make molds and cores for ferrous metal casting. Its low cost, excellent refractoriness, and good thermal stability are key.
- Fluxing/Slag Conditioning: Coarse quartzite or sand is added to metallurgical slags (e.g., in EAF or primary melting) to lower the basicity of the slag. This increases the fluidity and reactivity of the slag, aiding in the removal of impurities like P and S.
- Abrasives and Coatings: Used in various forms for grinding, blasting, and as a filler in protective coatings.
- Crystalline Polymorphs and Thermal Stability
SiO₂ exhibits multiple crystalline forms (polymorphs) at high temperatures, each having different densities and thermal expansion characteristics:
- Quartz: Stable below 870°C.
- Tridymite: Stable from 870°C to 1470°C.
- Cristobalite: Stable from 1470°C to 1710°C.
The volume changes that accompany the transitions between these forms can cause cracking or spalling in refractories. Silica bricks must be carefully fired to convert the bulk of the Quartz to the more stable Tridymite/Cristobalite phases to ensure volume stability in service.
- Technical Guidance
- Contamination: SiO₂ has poor resistance to basic oxides (CaO, MgO) and alkali metals (Na, K). The presence of even small amounts of these impurities drastically lowers the melting point of the refractory, forming a low-viscosity silica glass phase. Therefore, acidic refractories (SiO₂ and Al₂O₃/SiO₂) are never used in contact with basic slags.
