Sagger Corundum Mullite
Sagger Corundum Mullite is a premium, high-purity ceramic container used in kilns and furnaces for thermal processing of sensitive or advanced materials. It is composed of a blend of high-purity Alumina (Al2O3 – Corundum) and Mullite (3Al2O3-2SiO2). This composite formulation is engineered to provide a superior combination of high refractoriness, exceptional hot strength, high thermal shock resistance, and minimal contamination compared to standard fireclay or pure Mullite saggers.
Main Chemical Compositions & Categories
The material is a dense, sintered composite designed to leverage the low thermal expansion of Mullite and the high purity/refractoriness of Corundum. The Al2O3 content is significantly higher than in standard Mullite.
| COMPONENT | COMPOSITION | PRIMARY ADVANTAGE |
| Corundum Aggregate | High-Purity Al2O3 | Maximum refractoriness and hot strength. |
| Mullite Matrix | 3Al2O3-2SiO2 | Excellent thermal shock resistance and low thermal expansion. |
| CLASSIFICATION | Al2O3 Content | TYPICAL MST |
| Corundum Mullite | 75% to 85% | ~1700°C to 1750°C |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Refractoriness | VERY HIGH | Significantly higher than standard fireclay or Cordierite, allowing use in advanced sintering processes. |
| Thermal Shock | EXCELLENT | The Mullite phase ensures the sagger can withstand the high-temperature gradients and rapid cycling of continuous kilns. |
| Hot Strength/Creep | SUPERIOR | High Al2O3 content minimizes slumping and deformation under the load of stacked wares at peak T. |
| Chemical Purity | HIGH | Low flux content reduces the risk of chemical attack on the sagger or contamination of the fired product. |

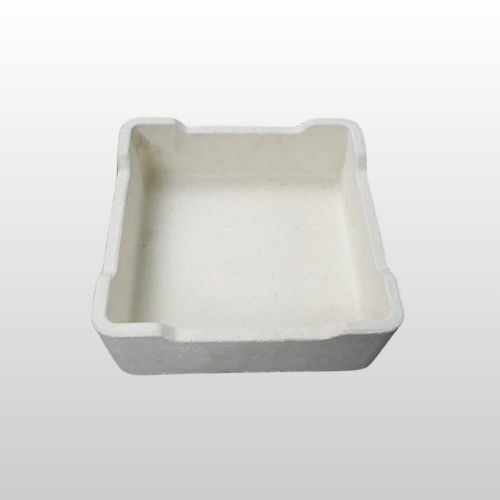

Sagger Corundum Mullite
Advantages and Key Characteristics
Corundum Mullite Saggers are an upgrade from lower-grade materials, specifically chosen for high-value products that require a high, stable temperature and zero tolerance for contamination or slumping.
- Extended Service Life: The combination of superior thermal shock resistance (Mullite) and high RUL (Corundum) results in fewer failures, reduced replacement costs, and longer campaign life compared to less robust saggers.
- Structural Integrity under Load: These saggers maintain excellent dimensional stability and resistance to creep (slumping under load) even at temperatures approaching 1750°C. This is critical for high-density kiln loading and large/heavy wares.
- Reduced Contamination Risk: The high purity of the raw materials means minimal volatile impurities (like iron oxide or alkalies) are released during firing, protecting sensitive electronic or optical ceramics.
- Energy Efficiency: While still porous enough for temperature uniformity, the dense structure resists mechanical wear and erosion, maintaining structural integrity over many cycles.
Typical Industries and Applications
This premium sagger is used for critical and high-value thermal processes:
- Advanced Ceramics: Sintering complex shapes, high-purity electronic ceramics (e.g., substrates, insulators), and ceramic armor.
- Metallurgy: High-temperature sintering of powdered metals, refractory metals, and specialized alloys under controlled atmospheres.
- Single Crystal Growth: Used as a container or holder in systems requiring extreme temperature stability and chemical inertness.
- Abrasives: Firing high-purity synthetic abrasives where firing uniformity is key.
Selection and Maintenance
Selection is based on the maximum temperature required and the sensitivity of the product:
- Corundum Mullite is the ideal choice when the firing temperature exceeds the limits of Cordierite/Fireclay (1450°C) but the system still involves frequent thermal cycling.
- High-Purity Alumina (99.8%) Crucibles are used if the MST exceeds 1750°C or if absolute minimal contamination is required (often at the expense of thermal shock resistance).
Technical Guidance: Due to their high strength, these saggers can typically be stacked higher and loaded heavier than standard fireclay saggers. They should be pre-fired or conditioned before use with sensitive wares to ensure all initial material volatiles are removed.
