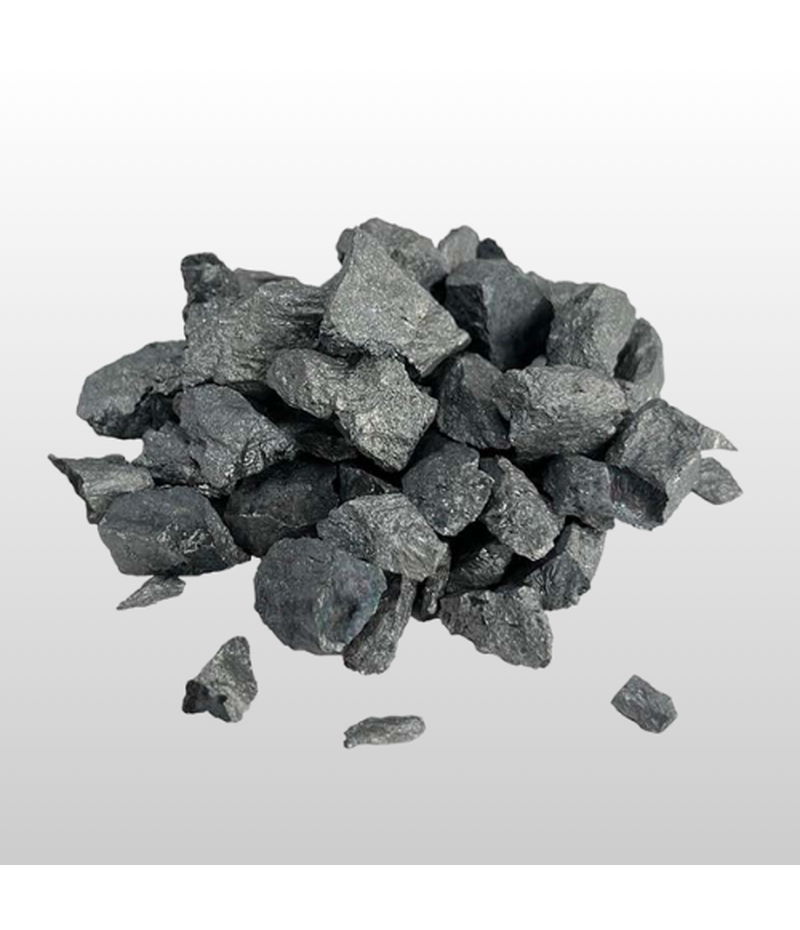

Nodularizer – FeSiMg
Nodularizer – FeSiMg Ferro-Silicon-Magnesium is a critical alloying agent used in the foundry industry to produce Ductile Iron (Nodular Iron). It is a master alloy that introduces Magnesium into the molten iron, causing the carbon (graphite) to precipitate in a spherical (nodular) form rather than in flakes.
This essential material transforms the brittle structure of grey iron into a highly ductile and tough material, capable of elongation and resistance to impact shock.
Main Function and Characteristics
The primary function of the nodularizer is Shape Control of Graphite. The inclusion of Magnesium neutralizes the trace elements that promote flake formation, leading to the desired spherical microstructure.
| Characteristic | Value Range | Primary Metallurgical Function |
|---|---|---|
| Magnesium (Mg) Content | 5% to 10% | The active element that induces graphite nodulization |
| Silicon (Si) Content | 40% to 50% | Carrier element (Ferrosilicon base) and graphitizing agent |
| Reaction | EXOTHERMIC | Reacts vigorously with molten iron, requiring precise control |
Classification
- Metallurgy Focus: Master Alloy (Additive)
- Primary Application Focus: Spheroidization of Graphite → Automotive, Pipe Manufacturing, and Heavy Machinery Castings
Key Performance Metrics
- Ductility: TRANSFORMATIVE — Converts brittle material into tough, ductile iron
- Tensile Strength: HIGH — Spherical graphite minimizes stress concentration points
- Process Consistency: CRITICAL — Needs low inclusion content to ensure consistent nodule count and size
Nodularizer – FeSiMg (Ferro-Silicon-Magnesium)
1. The Spheroidization Mechanism
Ductile iron is distinguished from traditional grey iron by its microstructure. While grey iron’s graphite precipitates as sharp, interconnecting flakes (creating internal stress points and brittleness), ductile iron features graphite in perfect spheres (nodules).
- Magnesium’s Role: When FeSiMg is added to molten iron, the Magnesium acts as a strong surface-tension reducer and deoxidizer. It effectively neutralizes the deleterious elements (like Sulfur and Oxygen) that would normally promote flake growth.
- The Result: Carbon atoms are forced to precipitate into compact spherical nodules during solidification. These nodules do not interrupt the metallic matrix, leading to high tensile strength, excellent elongation, and significantly increased shock resistance.
2. Production and Handling
Because elemental Magnesium has a low boiling point and a high affinity for Oxygen, its introduction into molten iron is challenging and must be carefully controlled:
- Master Alloy Form: The Magnesium is alloyed with Ferrosilicon to lower its vapor pressure and increase its recovery rate in the melt.
- Reaction Vessels: Specialized treatment ladles are often used, and the FeSiMg alloy is typically plunged deep into the melt to maximize yield and minimize flare-up (fuming).
3. Applications
- Automotive: Used extensively for critical components requiring strength and lightness, such as crankshafts, suspension parts, and transmission housings
- Infrastructure: Essential for high-pressure water and sewage pipes (Ductile Iron Pipe), prized for its toughness and resistance to subterranean movement
- Heavy Machinery: Used in large, load-bearing castings like gearboxes and heavy-duty farm equipment frames
