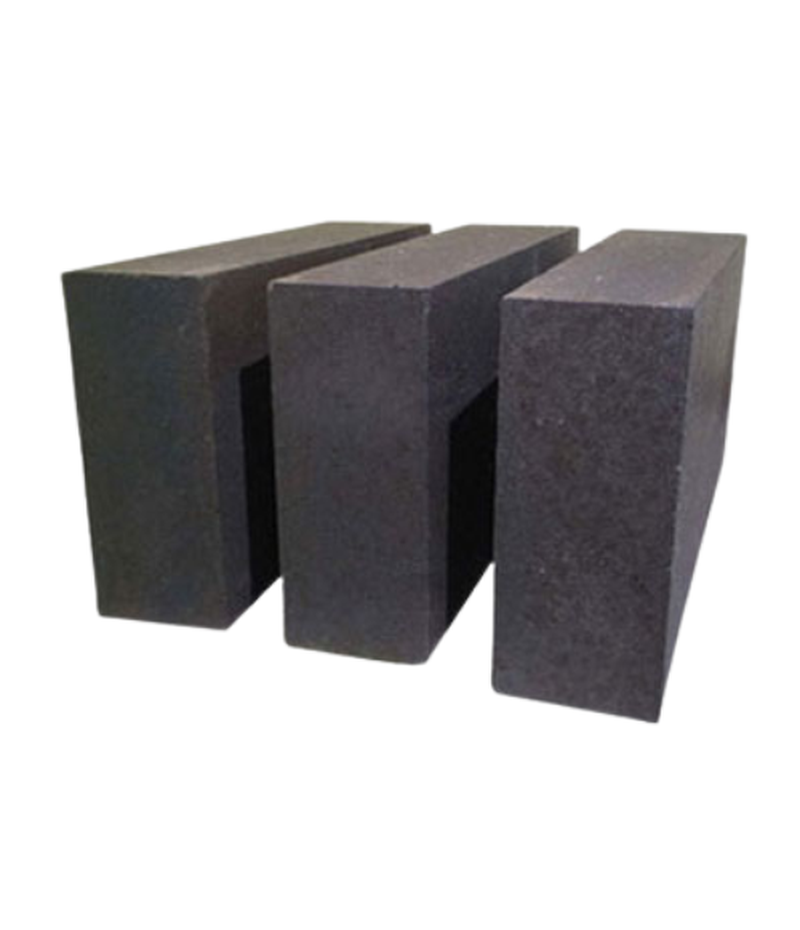

Magnesia‑Chrome Brick High Chrome
Magnesia‑Chrome Brick High Chrome are composed of high-purity MAGNESIA (MgO) and a significant amount of CHROMIUM OXIDE (Cr2O3), typically derived from high-grade natural chrome ore or synthetic MgO-Cr2O3 co-clinkers. The Cr2O3 content is generally over 15%.
| CATEGORY | Cr2O3 CONTENT | MgO CONTENT | PRIMARY ADVANTAGE |
| HIGH Cr2O3 | 15% – 30% | 50% – 75% | Enhanced resistance to complex slag and spalling |
| STANDARD Cr2O3 | 8% – 12% | 60% – 80% | General purpose basic refractory |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Slag Resistance | EXCELLENT | $\text{Cr}_{2}\text{O}_{3}$ is insoluble in both $\text{MgO}$ and the slag, preventing infiltration and chemical dissolution. |
| Thermal Shock | GOOD (Improved) | The secondary phases ($\text{Cr}_{2}\text{O}_{3}$ and $\text{Spinel}$) reduce the thermal expansion and increase the elasticity of the $\text{MgO}$ matrix. |
| Creep in Compression ($\text{CISC}$) | VERY LOW | The chrome phases stabilize the grain boundaries, maximizing resistance to deformation under load at high temperatures. |
| Hot Strength ($\text{T}_{UL}$) | VERY HIGH | Maintained by the $\text{MgO}$ and the highly refractory $\text{Cr}_{2}\text{O}_{3}$ component. |
Magnesia‑Chrome Brick High Chrome: Advantages and Key Characteristics
High Cr2O3 Magnesia-Chrome bricks are used in high-wear, basic slag environments where superior slag and spalling resistance are needed, exceeding the capability of standard MgO or MgO-C grades.
- Enhanced Chemical Inertness: The higher Cr2O3 content provides superior resistance against basic CaO-rich slags, as well as complex, low-silica slags often found in refining processes.
- Superior Spalling Resistance: Cr2O3 inclusion helps suppress the formation of low-melting silicate phases common in pure MgO, and the resulting composite structure has better thermal shock resistance, allowing for slightly faster cycling than DBM.
- Volume Stability: The formation of MgO-Cr2O3 solid solutions and spinels creates a dense, interlocked structure that is highly resistant to volume changes and creep under load.
Typical Industries and Applications
This premium grade is used in severe thermal and chemical conditions:
- Non-Ferrous Industry: Converters, smelting furnaces, and refining vessels for copper, nickel, and lead, which often generate aggressive Fe-rich basic slags.
- Cement Industry: Transition and burning zones of rotary kilns that operate at very high temperatures and require improved thermal shock resistance.
- Glass Industry: Specialized regenerator zones in the presence of strong Na2O and V2O vapors.
Furnace Areas and Service Zones
They are specified for high-risk zones where standard refractories fail quickly:
- COPPER/NICKEL CONVERTER SLAG LINE: The most demanding application, requiring resistance to highly corrosive Fe– and Cu-rich basic slags and thermal cycling.
- CEMENT KILN TRANSITION ZONE: Area between the burning zone and the preheater, where high temperature meets high thermal gradient.
- EAF/BOF BOTTOM AND HOT SPOT LININGS: Used for extended campaign life in specific severe zones.
Key Data Sheet Properties to Consider
Selection criteria focus on the active Cr2O3 component:
- Cr2O3 Content: 15% or higher must be verified for this designation.
- R2O3 Ratio (Al2O3 + Cr2O3): High total refractory oxide content is required for maximum performance.
- Bulk Density (BD) and Apparent Porosity (AP): Must be maximized (BD) and minimized (AP) to resist slag infiltration.
- Bonding Type: Fusion-cast or high-sintered MgO-Cr2O3 co-clinkers offer superior performance to simple mixes.
Technical Guidance: High Cr2O3 Magnesia-Chrome bricks are high-cost refractories. Their use is justified by the need for superior spalling resistance and chemical stability in complex slag systems. As with all chrome-containing refractories, specific waste handling protocols must be observed to manage potential Cr(VI)}$ formation upon demolition and disposal.
