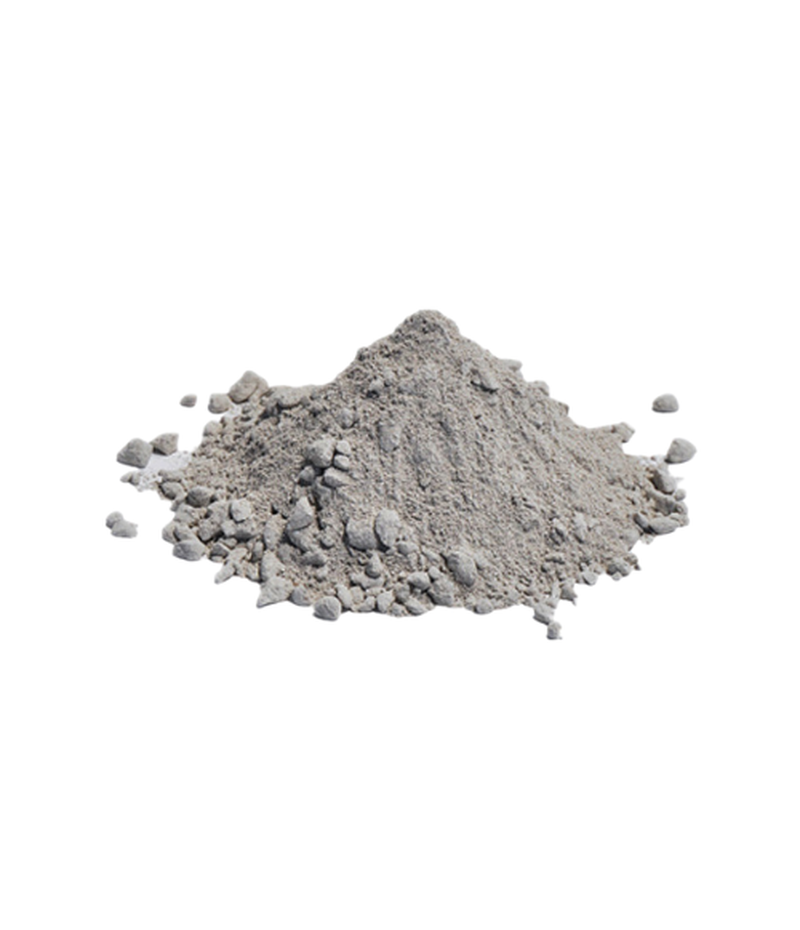

Insulating Castable
Insulating Castables consist of a lightweight, highly porous aggregate (e.g., expanded clay/shale, perlite, vermiculite, bubble alumina, or lightweight fireclay) and a binding system, usually based on Calcium Aluminate Cement (CAC). The density is significantly lower than that of dense castables.
| AGGREGATE TYPE | DENSITY (After Firing) | KEY FEATURE | PRIMARY ADVANTAGE |
| Lightweight Clay/Shale | 1.0 – 1.5 g/cm3 | Economical, low end insulation | Cost-effective thermal barrier |
| Porous Alumina/Bubble | 0.8 – 1.2 g/cm3 | Higher refractoriness, better strength | Insulation in hotter zones |
| Vermiculite/Perlite | 0.4 – 0.8 g/cm3 | Ultra-low density | Maximum thermal efficiency (but lower T) |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Thermal Conductivity ($\text{T}_{\text{C}}$) | EXTREMELY LOW | High apparent porosity ($\text{AP}$) and low bulk density trap air, which is a poor heat conductor. |
| Thermal Shock Resistance | EXCELLENT | High porosity and lower modulus of elasticity allow the material to easily absorb thermal stresses. |
| Cold Crushing Strength (CCS) | MODERATE | Sufficient for backing layers or light-load working linings, but much lower than dense castables. |
| Service Temperature | MODERATE to HIGH | Varies widely based on aggregate; typically between $\sim 1000^{\circ}\text{C}$ and $1600^{\circ}\text{C}$. |
Insulating Castable
Advantages and Key Characteristics
Insulating Castables are vital for optimizing furnace performance by increasing energy efficiency and protecting the outer steel shell from excessive heat.
- Superior Energy Efficiency: The low thermal conductivity (Tc) significantly reduces the amount of heat lost through the furnace walls. This translates directly into lower fuel consumption and reduced operating costs.
- Reduces Shell Temperature: By minimizing heat transfer, the castable keeps the outer steel casing of the furnace at a safe, low temperature, protecting personnel and prolonging the life of the steel structure itself.
- Rapid Heating/Cooling: Due to the low thermal mass (less material to heat up), furnaces lined with insulating castables can achieve operating temperature faster, increasing production throughput.
- Versatile and Seamless Lining: Like all castables, they can be poured, gunned, or troweled to create a seamless, monolithic layer, eliminating the thermal leakage points (joints) inherent in insulating brick linings.
Typical Industries and Applications
This castable is used in almost all high-temperature processes as a thermal barrier:
- Ferrous/Non-Ferrous Industry: Backup insulation lining in EAFs, ladles, holding furnaces, and reheating furnaces.
- Ceramics & Glass Industry: Kiln crowns, doors, car tops, and general furnace shell linings.
- Petrochemical & Chemical: Reactor linings and furnace headers where precise temperature control and energy savings are critical.
Furnace Areas and Service Zones
They are specified for protection, structure, or specialized low-load working zones:
- BACKUP LINING: Placed between the dense working lining and the steel shell (the most common application).
- FURNACE DOORS AND VESTIBULES: Low-load, high-thermal-shock areas requiring light weight and fast heat-up.
- LOW-TEMPERATURE WORKING LINING: Used as the hot face lining in furnaces operating below 1200°C (e.g., heat treatment, stress relieving).
Key Data Sheet Properties to Consider
Selection criteria focus on thermal performance and density:
- Thermal Conductivity (Tc): CRITICAL VALUE. Must be specified at the service temperature (e.g., Tc at 800°C) and should be as low as possible (e.g., 0.2 – 0.5 W / (m.K)).
- Bulk Density (BD) and Apparent Porosity (AP): CRITICAL VALUE. Look for low BD (e.g., < 1.0 g/cm3) and high AP> 50%) to maximize insulation.
- Maximum Service Temperature (MST): Must be suitable for the temperature at the hot face of the insulating layer (not the core furnace temperature).
- Cold Crushing Strength (CCS): Should be sufficient to support the weight of the dense working lining and the outer shell forces.
Technical Guidance: Insulating castables, like all hydraulic castables, require a strict, slow dry-out and heat-up schedule due to their porosity, which holds a significant amount of water. Never use an insulating castable as a working lining in a high-wear or high-load zone, as its low strength and high porosity make it susceptible to abrasion, erosion, and chemical penetration.
