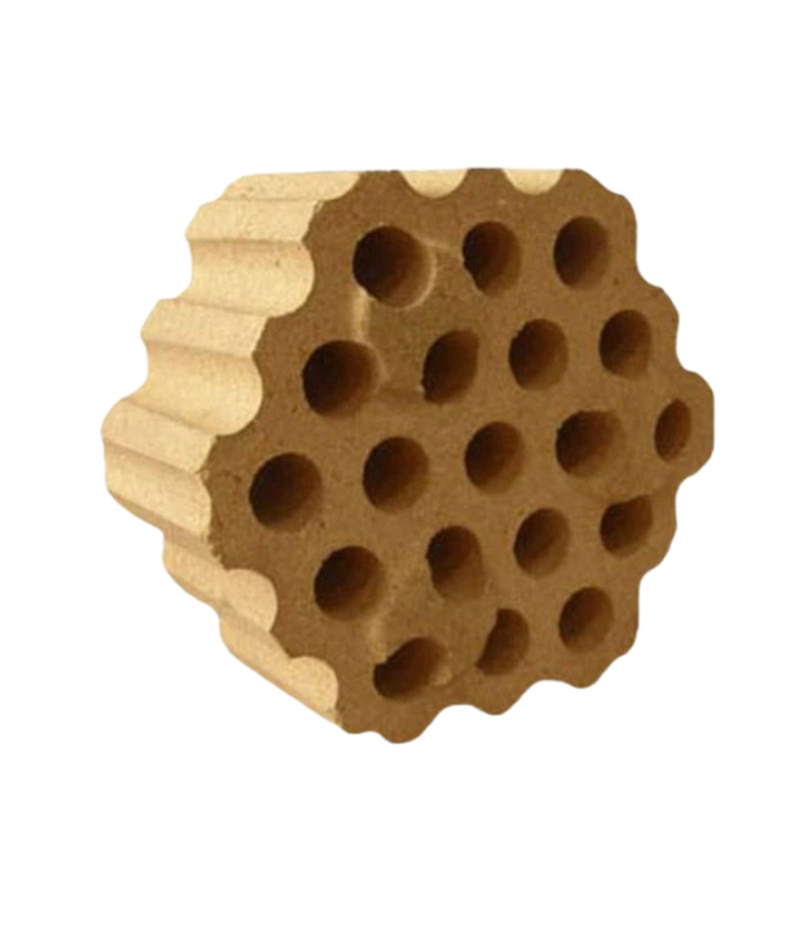

Fireclay Checker Brick SK33 SK34
Fireclay Checker Brick SK33 SK34 are derived from the standard Fireclay grades, primarily composed of ALUMINA (AL2O3) and SILICA (SIO2). Their performance is defined more by their structural geometry (high surface area) than by raw chemistry.
| GRADE | AL2O3 CONTENT | PRIMARY FUNCTION | SERVICE ZONE |
| SK33 Checker | 30% TO 35% | HEAT STORAGE/TRANSFER | LOW-TO-MID TEMPERATURE REGENERATOR |
| SK34 Checker | 38% TO 45% | HEAT STORAGE/TRANSFER | MID-TO-HIGH TEMPERATURE REGENERATOR |
KEY PROPERTIES AND PERFORMANCE
| PROPERTY | TYPICAL PERFORMANCE | VARIATION WITH AL2O3 CONTENT |
| HEAT CAPACITY | HIGH (DESIRABLE) | INCREASES SLIGHTLY WITH BULK DENSITY (BD), WHICH IS TYPICALLY HIGHER THAN STANDARD LINING BRICKS. |
| TEMPERATURE UNDER LOAD (TUL) | MODERATE (SK33) TO GOOD (SK34) | CRITICAL AS THE BRICKS SUPPORT A LARGE STACK LOAD. IMPROVES AS AL2O3 CONTENT RISES (SK34 IS BETTER). |
| THERMAL SHOCK | EXCELLENT | CRITICAL DUE TO REPEATED, RAPID THERMAL CYCLING. GOOD POROSITY AND MODERATE SIO2 HELP. |
| CORROSION | MODERATE RESISTANCE TO FLUE GAS | IMPROVES AS AL2O3 RISES. VULNERABLE TO ALKALI AND DUST CARRY-OVER, CAUSING BLOCKAGES. |
Fireclay Checker Brick SK33 SK34
ADVANTAGES AND KEY CHARACTERISTICS
Checker bricks are specialized heat exchange media. Their geometry (often with internal holes or complex patterns) is designed to maximize the contact surface area and turbulate gas flow.
- High Thermal Efficiency: They are engineered for REGENERATION—absorbing heat from hot waste gases during one cycle and releasing it to incoming cold air/gas during the next. This significantly reduces fuel consumption.
- Excellent Volume Stability: Fireclay grades are generally stable against volume changes, which is vital for maintaining the structural integrity of the tall checker settings.
- Custom Geometries: Offered in various patterns (e.g., Basketweave, K-checker) to optimize heat transfer efficiency versus pressure drop.
TYPICAL INDUSTRIES AND APPLICATIONS
Checker bricks are primarily used in operations that rely on cyclical heat recovery:
- Glass Industry: The most common user, in regenerators for glass melting tanks.
- Ferrous Industry: Hot blast stoves (HBS) used to heat air for the blast furnace.
- Coke Ovens: Regenerators for preheating combustion air.
FURNACE AREAS AND SERVICE ZONES
They are used exclusively in the regenerator chambers of large industrial furnaces:
- Lower Zones (Colder): SK33 grade is used here, where gas temperatures are lower and the risk of ALKALI CORROSION is high, as the alkalis tend to condense in this cooler area.
- Upper Zones (Hotter): SK34 grade is used here, providing better TUL and refractoriness to handle the peak temperatures delivered by the combustion gases.
- Checkers Stacks: Installed in deep, vertical columns, requiring the bricks to withstand significant compression load from the weight of the layers above.
KEY DATA SHEET PROPERTIES TO CONSIDER
Selection criteria are unique, focusing on thermal performance and structural integrity:
- Design/Geometry: The specific hole size, shape, and lattice pattern that defines the surface area and pressure drop.
- Bulk Density (BD): CRITICAL for heat storage capacity. A higher BD means more mass to store heat.
- Apparent Porosity (AP): Should be consistent. While higher porosity aids thermal shock, low porosity is needed to resist FLUXING and subsequent BLOCKAGE (the biggest failure mode).
- Refractoriness Under Load (TUL): MANDATORY check against the full weight of the checker stack and maximum expected temperature.
TECHNICAL GUIDANCE: The main enemy of checker bricks is BLOCKAGE (PLUGGING) caused by carry-over dust and volatilized alkalis condensing and reacting with the brick surface. For highly dusty applications, consider MAGNESIA or HIGH ALUMINA checkers, as they are more resistant to alkali attack and the subsequent viscous phase formation that plugs the air passages.
