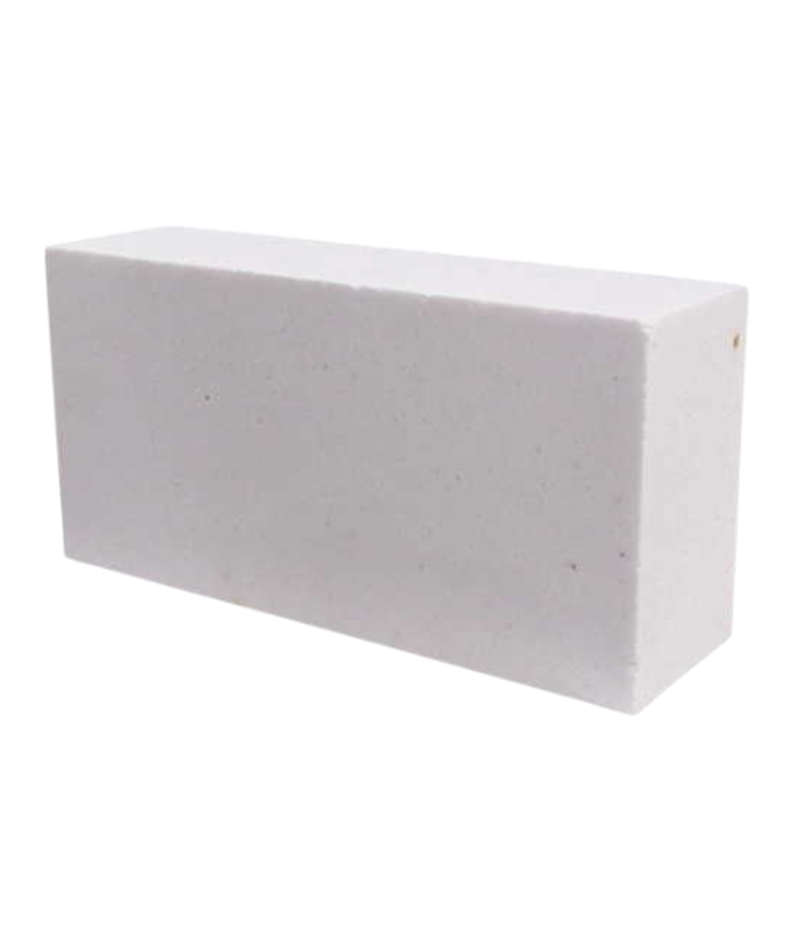

Corundum Mullite Brick
Corundum Mullite Brick is a specialty high-alumina refractory material formulated to contain a controlled microstructure of both crystalline Corundum (Al₂O₃) and Mullite (3Al₂O₃·2SiO₂). By combining these two stable phases, the brick achieves an optimized balance of properties:
- Corundum: Extreme refractoriness and chemical inertness
- Mullite: Superior thermal shock resistance and creep resistance
This makes it a premium solution for severe service applications in steel, glass, and chemical industries where operating conditions involve both high thermal cycling and aggressive chemical attack.
Main Function and Characteristics
The primary function is to provide a Balanced, Ultra-Stable Lining. Mullite stabilizes the structure against thermal stress, while Corundum provides resistance against corrosion and wear.
| Characteristic | Value Range | Primary Refractory Function |
|---|---|---|
| Material Base | Corundum (Al₂O₃) & Mullite (3Al₂O₃·2SiO₂) | Synergy of high refractoriness and thermal shock immunity |
| Alumina Content | 75% to 90% | Higher Al₂O₃ than standard Mullite for greater refractoriness |
| Thermal Shock Resistance | VERY HIGH | Derived from Mullite’s low thermal expansion |
Classification
- Material Focus: Specialty High-Alumina Brick
- Primary Application Focus: Corundum-Mullite Composite → Glass Tank Crowns, Hot Blast Stove Domes, Cement Kiln Transition Zones
Key Performance Metrics
- Slag Resistance: HIGH — High Al₂O₃ content resists acidic/neutral slags and metal penetration
- Creep Resistance: EXCELLENT — Mullite’s crystal structure maintains strength under load at peak temperatures
- Volume Stability: SUPERIOR — Negligible change during prolonged service, preventing structural failure
Corundum Mullite Brick
1. The Rationale for the Composite Structure
- Pure Corundum: Extremely refractory but sensitive to thermal shock
- Pure Mullite: Excellent thermal shock resistance but slightly lower maximum service temperature
Optimized Synergy: Corundum Mullite bricks combine both advantages. Corundum acts as the high-refractory skeleton, while Mullite provides elasticity and thermal fatigue resistance.
Manufacturing: Produced by blending synthetic Mullite and sintered Corundum powders or using raw materials that convert to the two-phase microstructure during high-temperature sintering (>1700°C). Ratios are engineered for specific applications.
2. Performance in High-Stress Zones
Ideal for transitional zones where conditions change rapidly:
- Glass Furnace Superstructure: Resists alkali fumes and thermal cycling
- Blast Furnace Stoves: Handles heavy load and alkali attack while maintaining RUL at high preheat temperatures
- Cement Kiln Transition Zone: Withstands high temperature and chemical reactions with kiln dust and clinker
3. Applications
- Glass Industry: Crowns, breast walls, burner ports of float and container glass furnaces
- Iron and Steel: High-performance zones in hot blast stoves and electric furnace roofs
- Chemical Processing: Linings for incinerators, calciners, and reactors requiring high chemical purity
- High-Temperature Kilns: Firing zones and supports for advanced ceramics and technical powders
