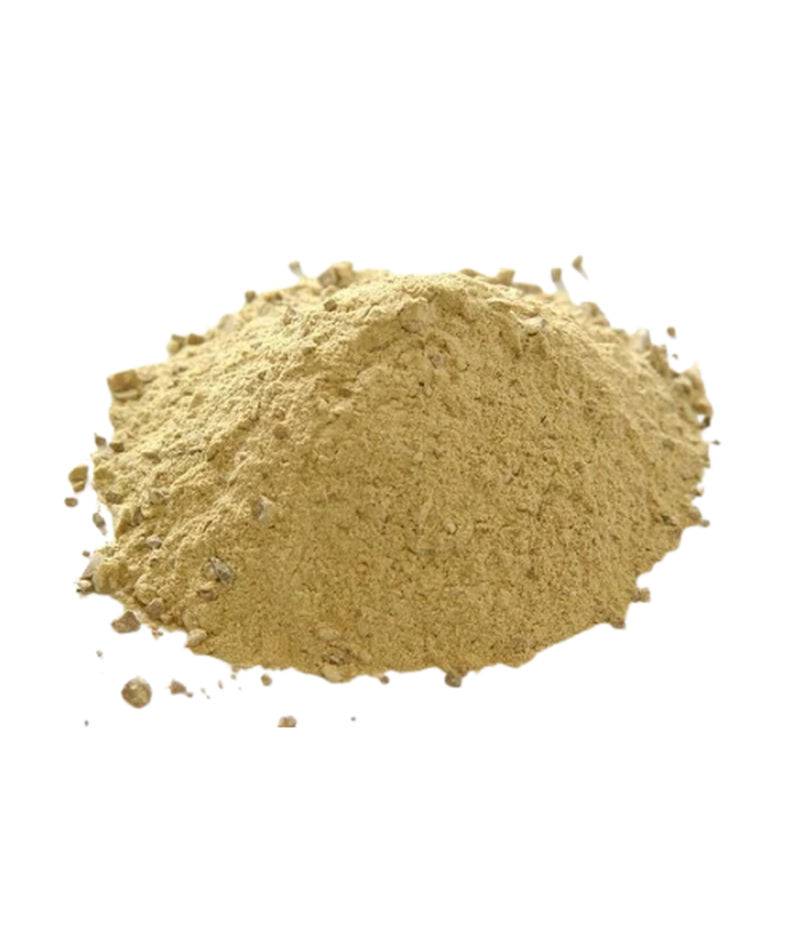

Clay-Bonded Castable
Clay-Bonded Castables consist of a refractory aggregate (e.g., calcined bauxite, chamotte, or tabular alumina) and a binder system where clay, sometimes combined with small amounts of high-alumina cement (HAC), provides both the binding action and initial setting strength.
| COMPONENT | CONTENT | KEY FEATURE | PRIMARY ADVANTAGE |
| Aggregate | 70% to 85% | Al2O3/SiO2 (Mullite formers) | Refractoriness and hot strength |
| Clay Binder | 10% to 25% | Plastic/Fireclay (Al2O3 – 2SiO2) | Green strength and high-temperature ceramic bond |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Green Strength | GOOD | The plasticity of the clay binder allows for easy shaping and high strength immediately after mixing/casting. |
| Thermal Shock Resistance | VERY GOOD | The clay binder results in a porous, low-density ceramic bond that is elastic and absorbs thermal stresses well (low $\text{CTE}$). |
| Service Temperature | MODERATE | Limited by the eutectic formation of the Al2O3-SiO2 system (1400°C to 1550°C). |
| Setting Mechanism | HYDRAULIC/CERAMIC | Initial hydraulic set (if HAC is added) followed by a final, permanent ceramic set upon first firing. |
Clay-Bonded Castable
Advantages and Key Characteristics
Clay-Bonded Castables are utilized primarily in moderate-temperature zones where excellent spalling resistance and cost-effective, custom shaping are critical.
- Superior Spalling Resistance: The most significant advantage. The clay matrix yields a porous ceramic bond upon firing. This high porosity and resultant low thermal conductivity, combined with the low modulus of elasticity, make the castable highly resistant to failure from rapid heating or cooling cycles.
- Cost-Effective Solution: Using natural clays as a primary binder is often more economical than using high-purity hydraulic cements or colloidal silica, making it suitable for large-volume applications in non-critical zones.
- Versatile Application: Can be installed by casting (pouring) into molds, ramming, or gunning, allowing for the creation of complex, monolithic shapes without the need for specialized brick fabrication.
- Good Hot Volume Stability: Once fully fired, the ceramic bond provides a stable, Mullite-based matrix with low residual shrinkage.
Typical Industries and Applications
This castable is used in areas of moderate heat, high thermal cycling, and complex geometry:
- Ferrous Industry (Steel): Ladle lips, tundish covers, soaking pit linings, and upper sections of reheating furnaces.
- Ceramics & Glass Industry: Kiln car top linings, flue linings, pre-heater hoods, and burner blocks.
- Chemical & Cement Industry: Cyclones, secondary air ducts, and rotary kiln transition zones where spalling is an issue.
Furnace Areas and Service Zones
They are specified for structural or impact zones with temperature fluctuations:
- BURNER BLOCKS: Used due to the ease of casting complex shapes and resistance to localized thermal shock.
- PROTECTIVE HOODS/COVERS: Used in ladles and furnaces to protect metal shells and resist heat fluctuations.
- GENERAL BACKUP LINING: Used behind dense working linings for thermal insulation and structural support.
Key Data Sheet Properties to Consider
Selection criteria focus on thermal stability and mechanical strength:
- Maximum Service Temperature (MST): CRITICAL VALUE. Must be checked to ensure the castable is rated for the peak operating temperature (typically 1400°C to 1550°C).
- Cold Crushing Strength (CCS): Required to confirm load-bearing capacity after curing and after firing.
- Permanent Linear Change (PLC): Should be low after high-temperature firing to confirm volume stability and prevent joint opening.
- Bulk Density (BD) and Apparent Porosity (AP): Lower BD (e.g., < 2.2 g/cm3) and higher AP are often indicative of better thermal shock resistance.
Technical Guidance: Clay-Bonded Castables MUST be fired above the temperature required to fully develop the ceramic bond before being exposed to the maximum service temperature. This castable requires a specific dry-out schedule (slow, controlled heating) to prevent failure from steam pressure build-up. Unlike hydraulic cement castables, their strength heavily relies on the high-temperature ceramic bond.
