Ceramic Tubes Alumina Mullite
Ceramic Tubes Alumina Mullite made from Al2O3 (Alumina) and Mullite (3Al2O3-2SiO2) are high-purity, refractory structural components used in high-temperature industrial and laboratory applications. They are valued for their extreme refractoriness, mechanical strength at heat, dimensional stability, and resistance to chemical attack in harsh environments.
Main Chemical Compositions & Categories
The primary difference is the chemical purity and the resulting temperature limit. Both materials are sintered oxide ceramics.
| MATERIAL BASE | Al2O3 Content | TYPICAL MST | PRIMARY ADVANTAGE |
| Mullite Tube | 60% to 75% | ~1700°C | Excellent thermal shock resistance and high creep resistance. |
| High Alumina Tube | 99.7% to 99.9% | ~1800°C to 1900°C | Maximum refractoriness, purity, and mechanical strength at ultra-high temperatures. |
Key Properties and Performance
| PROPERTY | MULLITE TUBE | HIGH ALUMINA TUBE | APPLICATION NOTE |
| Purity/Inertness | Moderate | Extreme | $99.7% Al2O3 is nearly non-reactive with most process gases. |
| Thermal Shock | Excellent | Good | Mullite handles rapid T changes better due to its microstructure. |
| Hot Strength | High | Maximum | High-Alumina maintains strength close to its MST. |
| Gas Tightness | Moderate | Excellent | High-Alumina tubes can be made completely gas-tight for vacuum or controlled atmosphere work. |

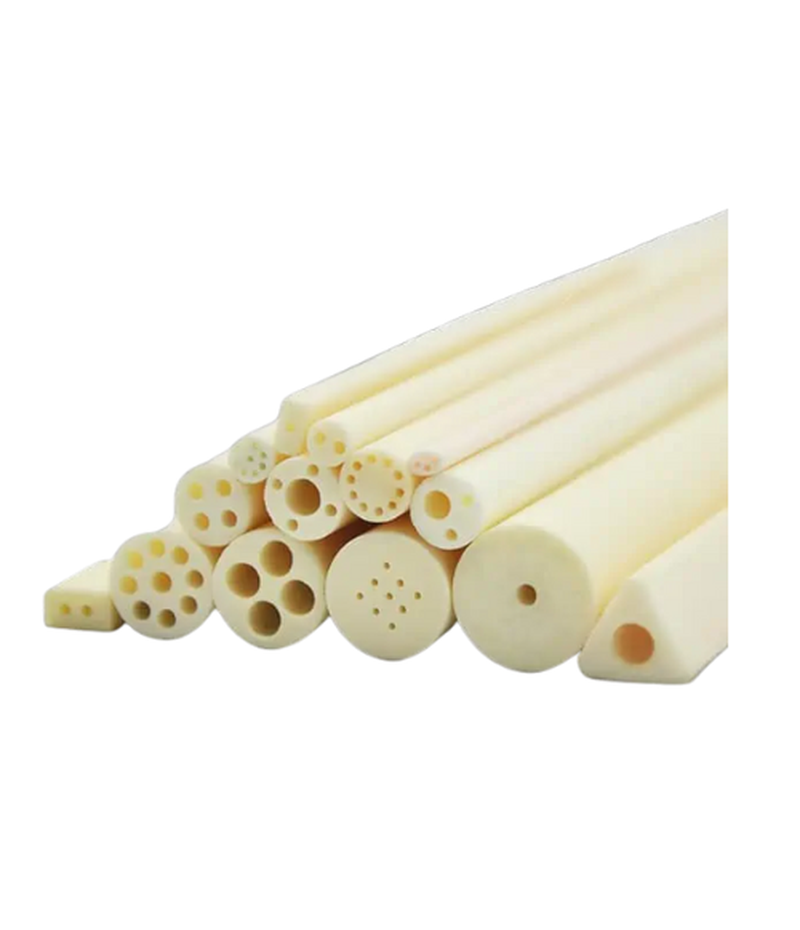

Ceramic Tubes Alumina Mullite
Advantages and Key Characteristics
Ceramic tubes offer superior performance over metal tubes in high-temperature oxidizing or corrosive atmospheres. They provide high mechanical rigidity and volume stability where metal alloys would soften, oxidize, or flux.
- High Refractory Protection: They are the ideal material for protecting sensitive components, such as thermocouple elements, from the high heat, chemical vapors, and physical erosion present in the furnace chamber.
- Structural Components: Used as rigid structural elements that must operate under load at extreme temperatures, such as furnace support posts, element carriers, or work tubes in continuous processes.
- Controlled Atmosphere Work: High Alumina tubes, in particular, can be manufactured to be non-porous and gas-tight, allowing them to be used as work tubes to maintain high vacuum or specific inert/reducing atmospheres for critical processing (e.g., sintering advanced ceramics).
- Chemical Inertness: The purity of the 99.7 % AL2O3 material ensures minimal volatile contamination of the furnace atmosphere or chemical reaction with process materials.
Typical Industries and Applications
These tubes are essential across all high-temperature processing sectors:
- Thermal Processing: Used as furnace elements and radiant tubes in electric or gas-fired high-temperature kilns and furnaces.
- Metallurgy: Thermocouple protection tubes in molten metal baths (steel, non-ferrous), tundish nozzles, and continuous casting components.
- Measurement & Control: Used to sheathe thermocouples, provide sight glasses for optical pyrometers, and house gas sampling probes.
- Research and Development: Work tubes for laboratory tube furnaces, high-purity chemical reactors, and synthesis processes.
Selection and Maintenance
Selection depends on balancing thermal shock needs and maximum temperature requirements:
- Choose Mullite when excellent thermal shock resistance is the priority (e.g., frequent cycling, rapid temperature changes, contact with fluctuating molten metal levels).
- Choose High Alumina when the requirement is for maximum MST, high mechanical strength under load, and high chemical purity/gas-tightness (e.g., continuous sintering, vacuum furnaces).
Technical Guidance: When installing tubes, ensure they are properly supported and insulated at the cold face, as the ceramic material is brittle and susceptible to failure from excessive mechanical stress (bending or shearing) and rapid, localized heating.
