Ceramic Fiber Module

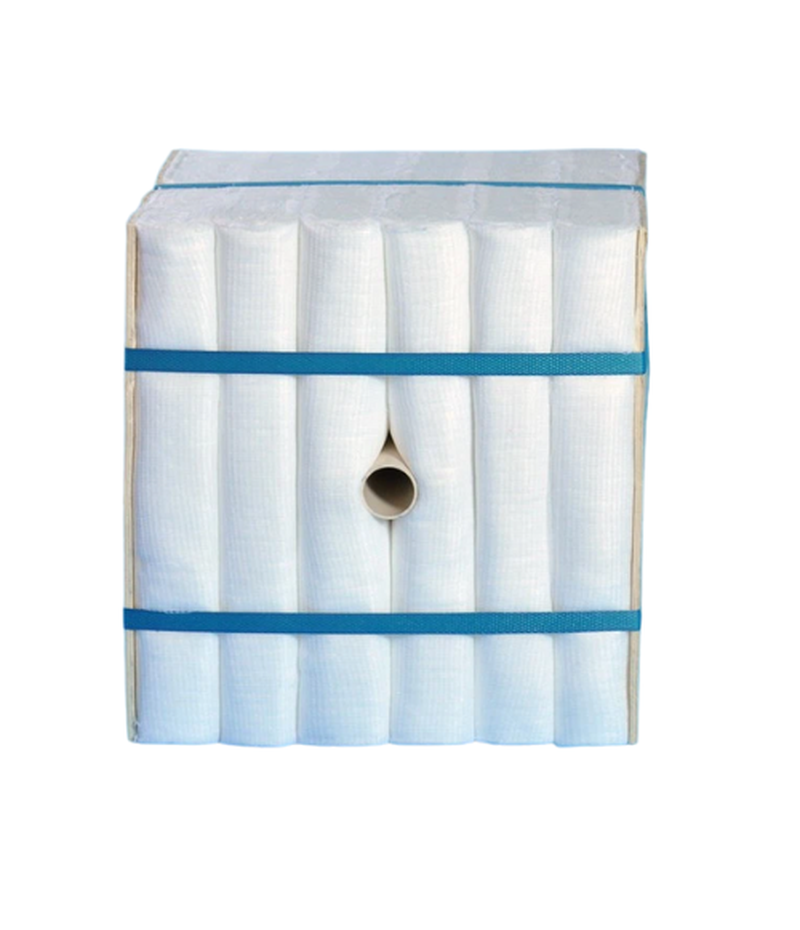

A Ceramic Fiber Module is a pre-fabricated, highly efficient refractory insulation unit made from Ceramic Fiber Blanket that is folded, edge-compressed, and anchored into a self-supporting block. Modules are designed to be mechanically anchored directly to the furnace steel casing, providing a hot-face lining that achieves superior thermal efficiency, excellent hot-face stability, and maximum installation speed.
Main Features
Modules use high-grade RCF blankets, typically 128 kg/m3 (8 b/ft3) density, and are available in the same Al2O3 content grades as blankets (1260°C to 1540°C MST). The key lies in the mechanical construction.
| FEATURE | DESCRIPTION | PRIMARY ADVANTAGE |
| Compression | 10% to 20% pre-compression (vertical or horizontal folds). | The stored energy presses modules tightly against each other, eliminating air gaps and joints. |
| Anchoring System | Embedded metal or ceramic hardware (e.g., stud, rail, plate) at the cold face. | Allows for direct, rapid mechanical fixing to the furnace shell. |
| Hot-Face Stability | Folds are oriented towards the hot face. | The folded structure minimizes fiber shrinkage in the lateral direction, enhancing durability. |
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Air Leakage | MINIMAL | Compression ensures a near-monolithic lining with virtually no open joints, minimizing heat loss via convection. |
| Installation Speed | MAXIMUM | Reduces installation time by up to 75% compared to installing loose blanket or brick. |
| Shrinkage/Life | LOW/LONG | The folded pattern is engineered to manage the small amount of thermal shrinkage that occurs, preventing hot spots and gap formation. |
| Thermal Mass | VERY LOW | Retains the essential benefit of RCF for fast, fuel-efficient furnace cycling. |
Advantages and Key Characteristics
Ceramic Fiber Modules are the preferred lining method for large-scale, high-temperature furnaces where energy efficiency, speed of installation, and structural integrity are critical design factors.
- Superior Thermal Performance: By compressing the blanket and eliminating air gaps between units, modules achieve a much tighter, more uniform seal than layered blanket, resulting in the lowest possible thermal conductivity for an RCF lining.
- Ease of Replacement and Repair: Individual modules can be quickly and easily removed and replaced without disturbing the adjacent sections, simplifying maintenance and repairs.
- Robust Mechanical Fixing: The embedded anchoring system provides a secure, reliable connection to the furnace shell, ensuring the lining remains stable even during high-velocity gas flows, mechanical vibration, or furnace pressure changes.
- Compensated Shrinkage: As the fiber on the hot face shrinks slightly over time, the compression releases, keeping the joints tight and closed, which prevents the formation of “hot spots” that would otherwise occur with non-compressed blanket linings.
Typical Industries and Applications
Modules are used in large-scale, high-temperature industrial environments:
- Large Industrial Furnaces: Primary hot-face lining for heat-treating furnaces, forging furnaces, stress-relieving ovens, and large annealing furnaces.
- Kilns: Linings for ceramic and specialty kilns, particularly where the lining needs to be periodically replaced or repaired.
- Ductwork and Flues: High-efficiency insulation for large flues and thermal oxidizers.
Key Data Sheet Properties to Consider
Selection must focus on geometry, density, and anchor type:
- Module Dimensions: The standard size (e.g., 300 x 300 mm or 12 x 12 inches) and thickness (from 100 x 300 mm) must match the furnace design.
- Compression Percentage: Confirms the amount of stored energy available to keep joints tight (typically 15% to 20%).
- Anchor System Type: Must be compatible with the furnace shell material and design (e.g., concealed anchor, visible stud-weld anchor, or rail system).
Technical Guidance: During installation, it is critical that the modules are installed tightly against each other to realize the full benefit of the compression. For continuous use above 1400°C, the anchors must be ceramic or a non-metallic alternative to prevent high-temperature metal failure or chemical attack.
