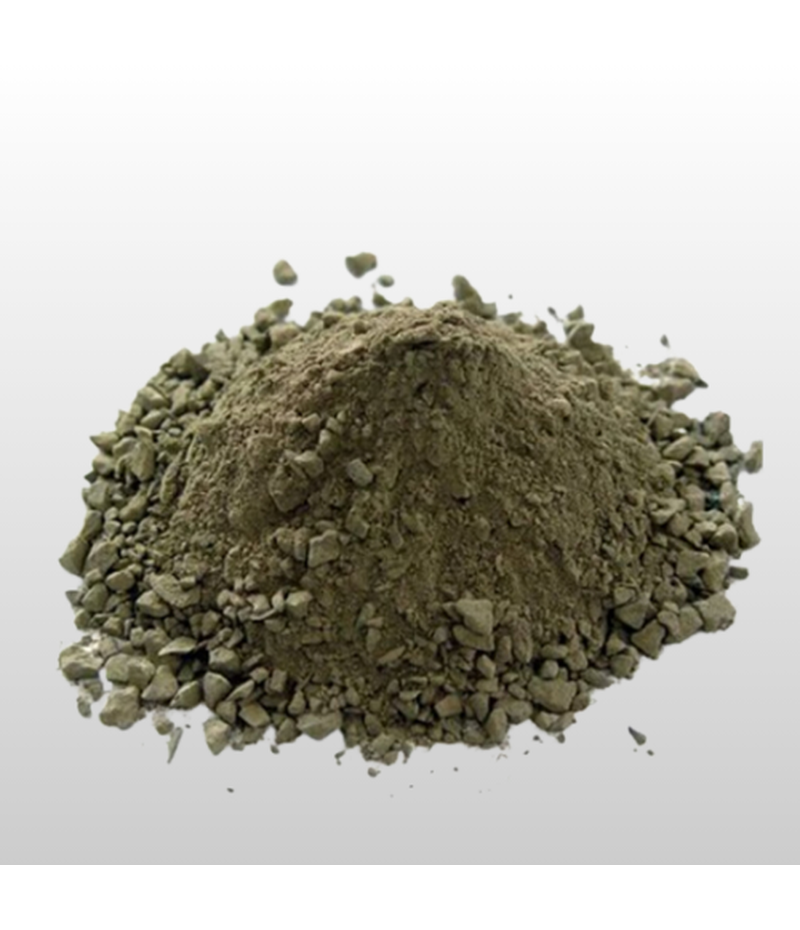

Calcium Aluminate Cement CAC 50
Calcium Aluminate Cement CAC 50, also known as High-Alumina Cement (HAC), is a specialized hydraulic cement where the primary active components are calcium aluminates (CA, C₁₂A₇, etc.) rather than the calcium silicates (C₃S, C₂S) found in Ordinary Portland Cement (OPC).
The 50% grade refers to the typical Al₂O₃ content (approximately 50% to 55%). This cement is widely used in refractory castables and construction applications where resistance to heat, aggressive chemical environments, and rapid strength development are required.
Main Function and Characteristics
CAC 50% acts as the hydraulic binder in refractory castables, providing quick setting, high strength, and maintaining refractoriness up to moderate temperatures.
| CHARACTERISTIC | VALUE RANGE | PRIMARY REFRACTORY FUNCTION |
|---|---|---|
| Alumina (Al₂O₃) Content | ~50% to 55% | Determines the refractoriness of the final castable. |
| PCE (Refractoriness) | >1550°C | Allows for general-purpose use in medium-heat environments. |
| Setting Time | FAST | Essential for rapid installation and de-molding. |
CLASSIFICATION
- Binding Focus: Hydraulic Refractory Binder – Forms stable crystalline hydrates upon mixing with water.
- Primary Application Focus: Conventional Castables, Repair Mortars, and Corrosion-Resistant Concrete.
Key Performance Metrics
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
|---|---|---|
| Early Strength | HIGH | Achieves load-bearing strength rapidly (e.g., in hours), accelerating construction. |
| Abrasion/Corrosion | EXCELLENT | Resistant to chemical attack from acids (to a degree) and sulfur compounds. |
| Thermal Stability | GOOD | Maintains mechanical strength at elevated temperatures compared to OPC. |
Calcium Aluminate Cement CAC 50
- The Hydration and Conversion Mechanism
When CAC is mixed with water, it forms crystalline hydrate phases (CAH₁₀, C₂AH₈, etc.), which lock the aggregate grains together and provide the initial hydraulic bond (green strength).
- Thermal Conversion (Danger Zone): As CAC is heated in service, these hydrate phases decompose around 100°C to 300°C, causing a temporary loss of physical strength (known as the “conversion” or “red hardness” phase). However, as temperatures rise further (above ~800°C), the CAC reacts with the fine refractory aggregates to form a ceramic bond that restores and often exceeds the original strength.
- Refractoriness: The CAC 50% grade is sufficient for conventional castables (those using 15% to 30% cement) in general medium-duty applications. For higher service temperatures, CAC grades with 70% or 80% Al₂O₃ (used in LCC/ULCC castables) are required.
- Comparison with Other Binders
- Ordinary Portland Cement (OPC): CAC has far superior heat resistance. OPC melts/softens below 1200°C due to its high SiO₂ content, making it unusable for most refractory applications.
- Chemical Binders (e.g., Phosphates): CAC offers the convenience of a water-mix hydraulic set, avoiding the need for strong acids or complex chemical reactions.
- Technical Guidance
- Heat of Hydration: CAC releases a significant amount of heat during setting. Proper curing (keeping the castable cool and moist) is vital to prevent rapid water evaporation and explosive spalling during the dry-out process.
- Water Ratio: Precise control of the water-to-cement ratio is essential. Too much water compromises the final strength and density.
