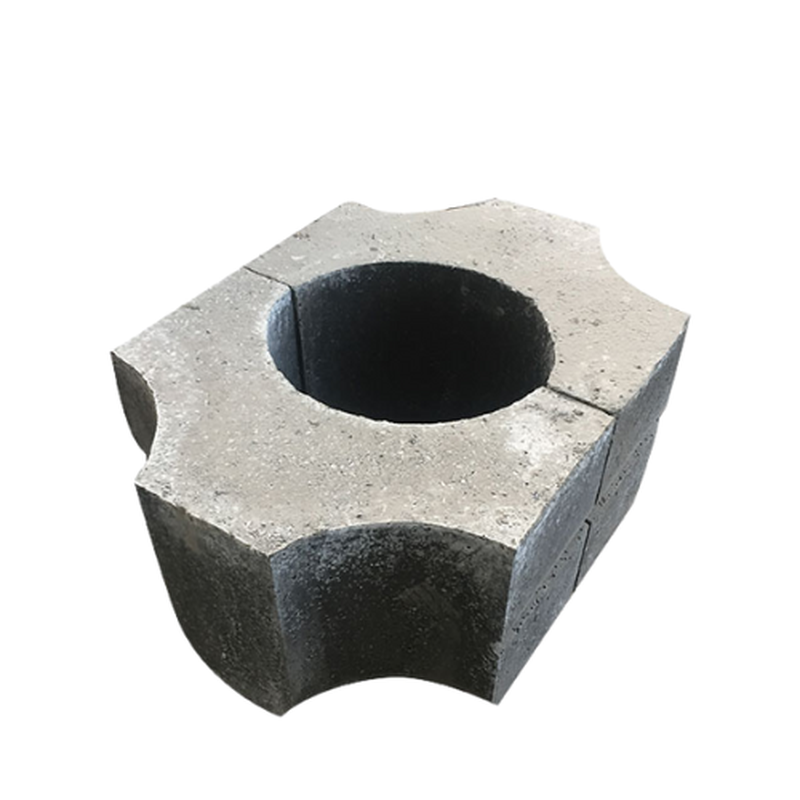

Anti-Slag Precast Block
Anti-Slag Precast Block is a highly engineered, large-format refractory component that has been cast, cured, and high-temperature-fired off-site into a specific shape (e.g., impact pad, ladle delta section, trough runner). These blocks are composed of high-purity, chemically resistant aggregates (such as high Al2O3, Magnesia-Carbon, Al-Cr, or Chrome Corundum) and are specifically formulated to exhibit maximum resistance to chemical attack and penetration by aggressive molten slags in metallurgical processes.
Main Chemical Compositions & Categories
The chemical base is chosen to be chemically incompatible with the slag to minimize fluxing and wear. The precast nature ensures optimal material properties (density, strength) compared to site-installed castables.
| MATERIAL BASE | CHEMICAL NATURE | PRIMARY APPLICATION FOCUS |
| High Al2O3/Corundum | Neutral/Acidic | Resists neutral and mildly acidic slags; high thermal shock resistance. |
| Magnesia-Carbon (MgO-C) | Basic | Maximum resistance to basic (CaO-rich) steel slags; excellent non-wetting properties. |
| Chrome Corundum | Neutral | Excellent resistance to highly aggressive, complex, or mixed acidic/basic slags. |
Key Properties and Performance
| PROPERTY | TYPICAL PERFORMANCE | MECHANISM OF ADVANTAGE |
| Slag Penetration | MINIMAL | Ultra-low apparent porosity (< 12%) prevents slag infiltration into the block structure. |
| Slag Corrosion | EXTREME | Chemically stable aggregates (e.g., MgO or Cr2O3) resist dissolution by the molten slag. |
| Density (Bulk) | HIGH | Off-site casting and vibration ensures maximum density and uniformity throughout the large shape. |
| Hot Strength | EXCELLENT | Maintains high structural integrity under chemical attack and load at operating temperatures. |
Anti-Slag Precast Block
Advantages and Key Characteristics
Anti-Slag Precast Blocks are used in critical zones that experience the fastest wear rates, offering a predictable, long-lasting solution that maximizes campaign life and reduces downtime.
- Guaranteed Properties: Since the block is cured and fired off-site under strict quality control, it achieves material properties (density, strength, porosity) that are often superior and more uniform than those achievable with site-installed monolithics.
- Maximum Wear Life: By using the highest grade, chemically resistant materials (often MgO-C or Al2O3 with special additives) exactly where the wear is fastest, these blocks dramatically extend the refractory life in high-wear zones like the slag line or metal impact areas.
- Rapid Installation: The block is ready to install, reducing installation time compared to bricklaying or the lengthy curing/dry-out process required for site-cast monolithic refractories.
- Precise Geometry: Essential for flow control or fitting around complex mechanical interfaces, the precast nature ensures accurate dimensional stability.
Typical Industries and Applications
This product is specialized for high-temperature metallurgy:
- Ferrous Industry (Steel): Electric Arc Furnace (EAF) deltas and roofs, Ladle Furnace (LF) slag lines, pouring spouts, tundish impact zones, and specialized pre-assembled runner sections.
- Non-Ferrous Industry: High-wear zones in aluminum or copper holding furnaces.
- Chemical Industry: Linings for chemical reactors and gasifiers handling highly corrosive ash or complex slags.
Key Data Sheet Properties to Consider
Selection criteria focus intensely on the block’s chemical resistance to the specific process environment:
- Material Purity/Type: CRITICAL VALUE. Must be specified (e.g., 90% AL2O3 or MgO-C with 15% Carbon) to match the slag chemistry.
- Apparent Porosity ($\text{AP}$): CRITICAL VALUE. Must be low (< 12% to 15%) to minimize slag penetration.
- Slag Corrosion Index: Look for specific supplier data showing the corrosion/dissolution rate against a simulated or actual process slag.
- Volume Stability: Must show low Permanent Linear Change (PLC) after firing to ensure the block maintains its dimensions.
Technical Guidance: When installing, the block must be placed on a perfectly flat surface, and the mortar joints must be sealed using a chemically compatible high-grade mortar to prevent the aggressive slag from bypassing the block and attacking the less-resistant backing refractories.
✨ Customization Services
We offer product customization services, allowing you to tailor the appearance, dimensions, or specific markings of items like refractory shapes or bricks. This includes options for incorporating specific geometric requirements to ensure seamless integration into your process systems.
🔬 Sampling for Testing & Validation
Free product samples are available for thorough testing and validation. This allows you to confirm the quality, compatibility, and performance of our materials—such as specific bricks, castables, or raw materials—before committing to a full order.
💡 Expertise in Refractory Solutions
Leverage our deep expertise to receive detailed, application-specific refractory solutions. We move beyond just selling products by providing comprehensive plans that encompass material selection, installation guidance, and performance optimization to maximize the lifespan and efficiency of your high-temperature processes.
Rabatec products are exclusively manufactured in facilities that have achieved rigorous ISO certifications across Quality (ISO 9001), Environmental Management, and Occupational Health & Safety. This commitment ensures every product, from refractory bricks to specialized equipment, meets the highest global benchmarks for performance, sustainability, and workplace safety.
📦 Logistics Excellence: Shipping, Packaging, and Marking
Minimizing Risk: We manage all logistics to minimize handling touchpoints and transit shock. Our carriers are pre-vetted for their experience in transporting heavy, fragile, and sensitive industrial materials.
Traceability: Every shipment includes comprehensive documentation and tracking information, providing end-to-end visibility and ensuring precise delivery coordination for your site.
Protection is Paramount: Our packaging strictly follows industry standards to prevent damage, corner chipping, and moisture absorption—especially critical for materials like Basic Refractory Bricks and Refractory Mortars & Mixes.
Robust Palletization: Products are secured on fumigated, high-strength export pallets (e.g., 1100x950mm or similar sturdy dimensions) using heavy-duty strapping and durable protective wrapping (polyethylene sheeting, cardboard, etc.) to withstand long-distance travel and multiple loadings.
Moisture Control: Sensitive materials are protected with appropriate sealing and, where necessary, desiccants or moisture-vapor proof enclosures to maintain the product's integrity until installation.
Clear Identification: All outer packaging is clearly marked on multiple sides with large, legible text for immediate identification and safe handling.
Full Traceability: Markings include all essential data points: Product Name, Quality Grade, Batch Number, Quantity, Net/Gross Weight, Order Number, and the Final Destination/Construction Area. This ensures every pallet can be accounted for and correctly staged upon arrival.
Safety & Compliance: We adhere to all regulatory requirements for marking, labeling, and placarding—especially for any items classified as Dangerous Goods—to ensure full compliance with international and domestic transport regulations.
❓ Frequently Asked Questions (FAQ)
Question | Elaborated Answer |
Q: What is the Refractoriness Under Load (RUL) of your refractories? | A: Refractoriness Under Load (RUL) is a critical property that defines the maximum temperature our materials can withstand while under compressive stress before deforming (softening). Since we offer a wide range of materials—from Alumina-Silicate Bricks to high-performance Silicon Carbide Bricks—the RUL varies significantly. For specific product data, please refer to the product data sheet or submit a quote request for the material you are interested in. |
Q: Where are the Rabatec refractories and materials produced? | A: Our products are primarily sourced from specialized manufacturing plants in China. Crucially, these facilities have all undergone rigorous audits and achieved comprehensive ISO certifications (Quality, Environment, and Safety), ensuring that production adheres to the highest global standards for consistency and performance. |
Q: What refractory materials does the company offer? | A: We supply a comprehensive portfolio of advanced refractory solutions, including: Shaped Products: Alumina & Silica Bricks, Basic & Specialized Bricks (e.g., Magnesia), SiC & Structural Ceramics, and Precast Shapes. Monolithic Products: Refractory Castables, Mixes & Mortars. Insulation: Insulation Fibre and High-Performance Insulation Products. |
Q: How should I choose the appropriate refractory material for my application? | A: Selecting the correct refractory is paramount to process efficiency. The choice depends on three key factors: 1. Operating Environment: Maximum process temperature and thermal cycling (shock). 2. Chemical Attack: Type of slag, molten metal, or corrosive gas being handled (acidic, neutral, or basic). 3. Mechanical Stress: Abrasion, erosion, and static load requirements. We recommend utilizing our detailed refractory solutions service to consult with our engineers for an optimized, application-specific recommendation. |
Q: Which monolithic material should I choose when patching an existing lining? | A: For patching and minor repairs, the ideal monolithic material depends on the parent lining material, the patching depth, and the need for a rapid return to service. Common choices include: Refractory Mortars & Mixes (for minor joints/surfaces) or Plastic Refractories (for areas requiring physical compaction). Always choose a patch material chemically compatible with the existing lining to ensure proper bonding and service life. |
Q: Can I receive product samples before placing a major order? | A: Yes. We gladly provide product samples for your internal testing and validation purposes. This ensures you can confirm the quality, composition, and fit of the material—such as our Refractory Castables or Alumina-Silicate Bricks—in your specific operational environment before committing to a bulk purchase. |
Q: Do you provide certifications to verify material quality? | A: Absolutely. We provide product-related inspection certificates and quality assurance documentation upon request. This verifies that your order has passed all internal quality control checks and meets the required material specifications and industry standards. |
Q: What measures are taken for product protection during transport? | A: We ensure quick, reliable transport by using robust, industrial packaging that strictly follows industry standards. This includes high-strength palletization, heavy-duty strapping, and weather-resistant wrapping to protect fragile items like bricks and mixes from corner chipping, mechanical damage, and moisture during transit. |
